Timber Structure of School Under Construction

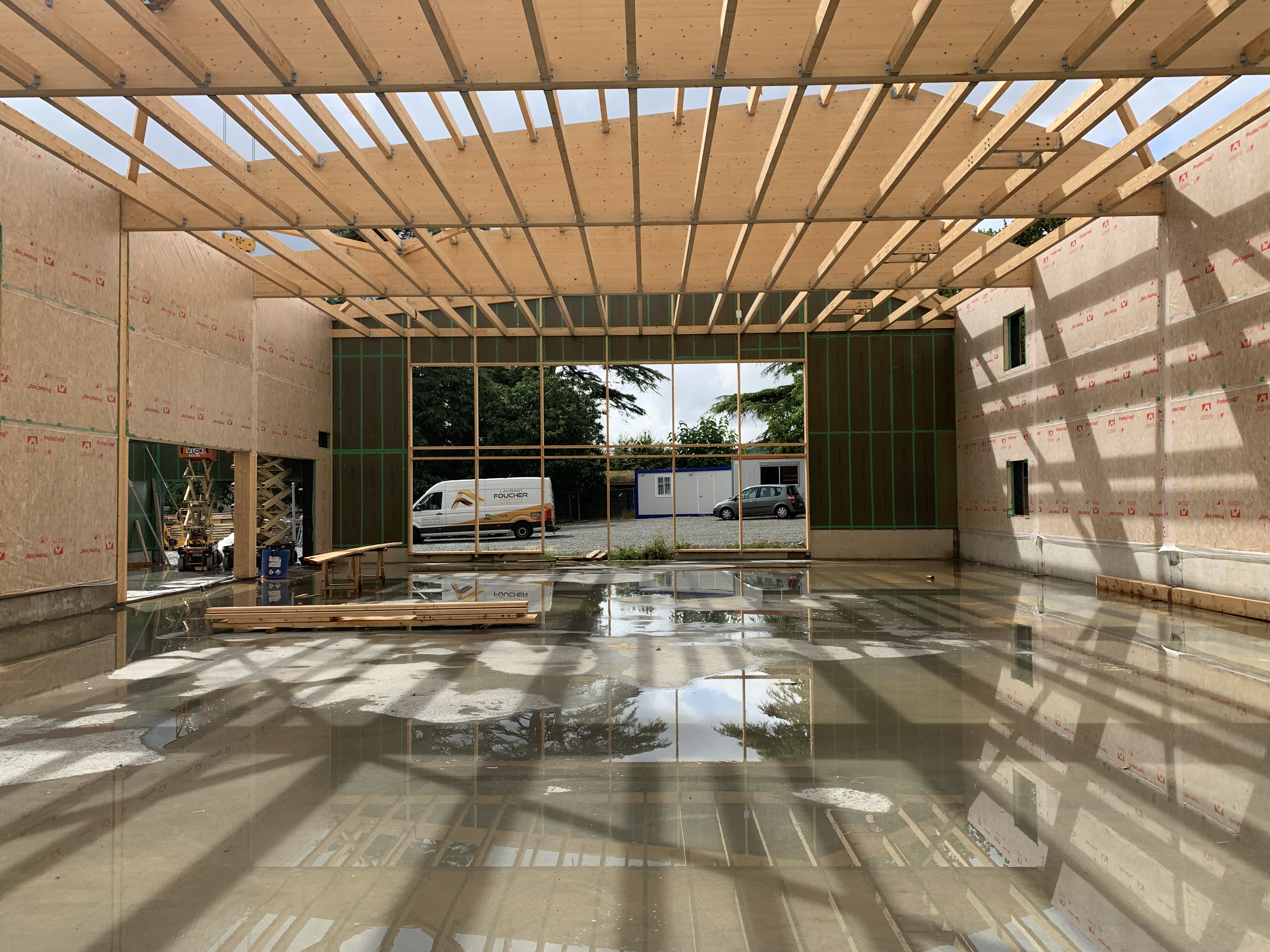

New multi-purpose hall with timber frame and walls under construction, described using RFEM and RF-TIMBER Pro. Photo by LCA Construction Bois.
The project represents the timber frame and walls of a new multi-purpose hall currently under construction. Using the advanced features of the RFEM, RF-TIMBER Pro and RF-DYNAM Pro modules, the structure demonstrates modern timber construction techniques. The project focuses on the extension and renovation of the school complex. Photo: © LCA Construction Bois.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 1335 |
| Number of Lines | 1711 |
| Number of Members | 1590 |
| Number of Surfaces | 75 |
| Number of Load Cases | 38 |
| Number of Load Combinations | 235 |
| Number of Result Combinations | 17 |
| Total Weight | 99.905 t |
| Dimensions (Metric) | 41.563 x 37.005 x 8.411 m |
| Dimensions (Imperial) | 136.36 x 121.41 x 27.6 feet |
| Program Version | 5.31.01 |
