Structural Deformations of Multi-Purpose Hall
Structural analysis of displacements in a multipurpose hall

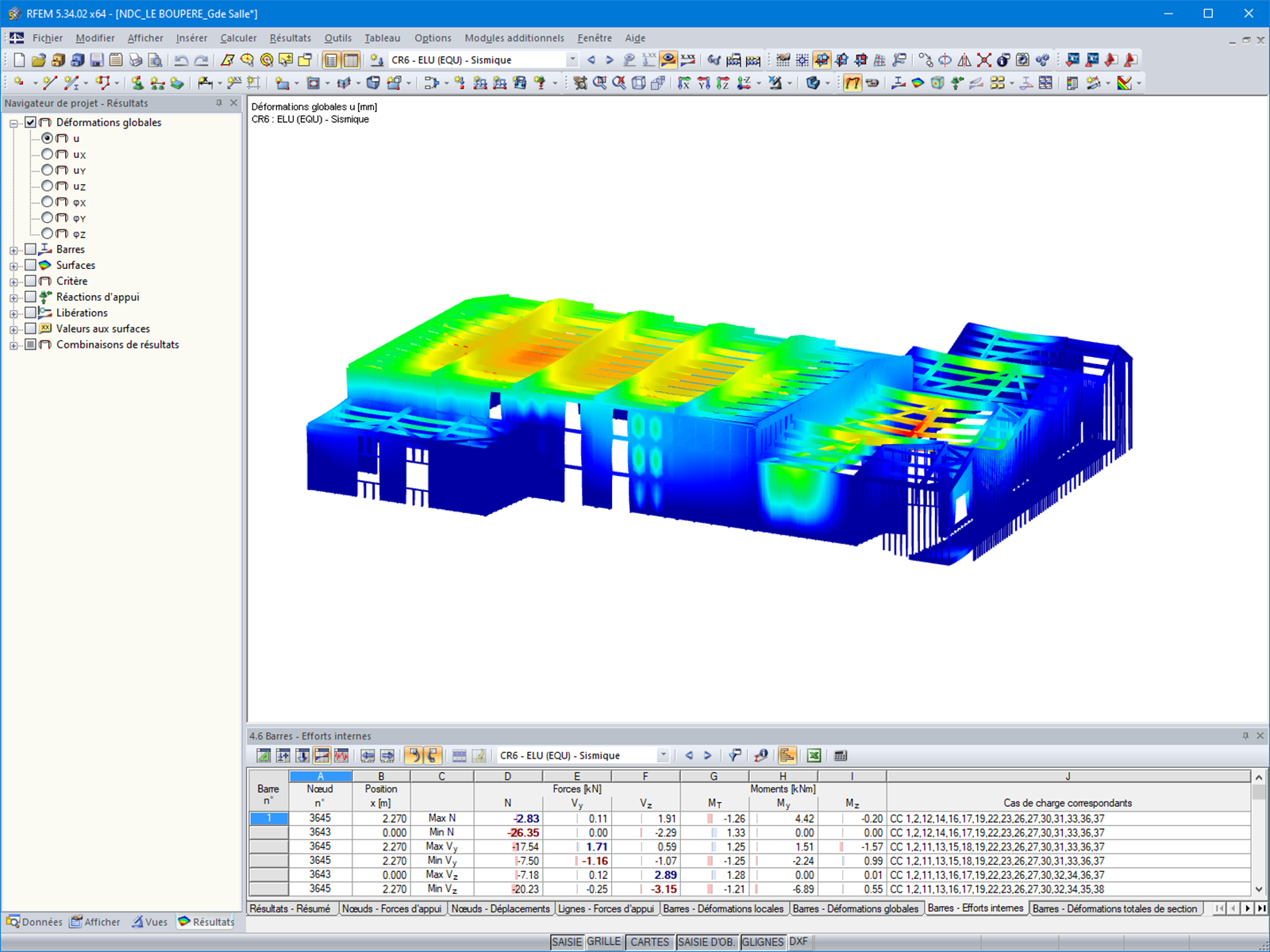

The image shows a technical simulation illustrating the structural deformations of a multi-purpose hall. The representation highlights the displacements and critical zones in the timber elements intended for multi-purpose spaces. The analysis is based on modeling carried out with RFEM 5 and its add-on modules, RF-TIMBER Pro and RF-DYNAM Pro.
© LCA Construction Bois
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 1335 |
| Number of Lines | 1711 |
| Number of Members | 1590 |
| Number of Surfaces | 75 |
| Number of Load Cases | 38 |
| Number of Load Combinations | 235 |
| Number of Result Combinations | 17 |
| Total Weight | 99.905 t |
| Dimensions (Metric) | 41.563 x 37.005 x 8.411 m |
| Dimensions (Imperial) | 136.36 x 121.41 x 27.6 feet |
| Program Version | 5.31.01 |
