Results for Predimensioning of Building – Story Modeling: Load Transfer Only

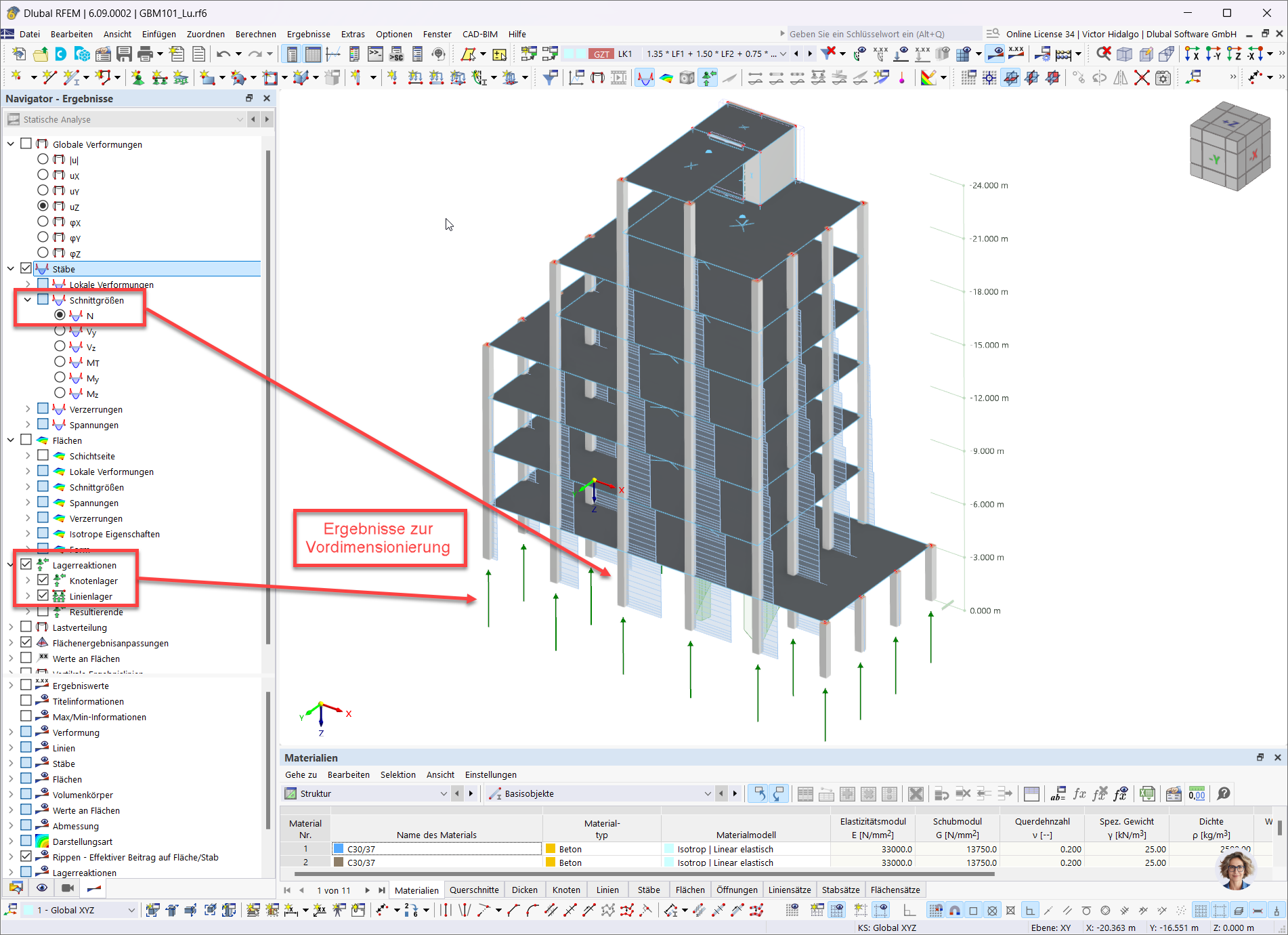

The image shows the predimensioning of a building with diaphragm-type nodal constraint in RFEM 6.

The image provides results for the predimensioning of a building. It shows a story modeling that only considers load transfer. The model result refers to the nodal constraint type diaphragm in RFEM 6, whereas the earlier option is no longer available in RFEM 5. An add-on is used to optimize the building modeling.
