Settings for 2D Subsoil Parameters and Support
Settings for the 2D subsoil parameters with generated layer properties and soil massif data

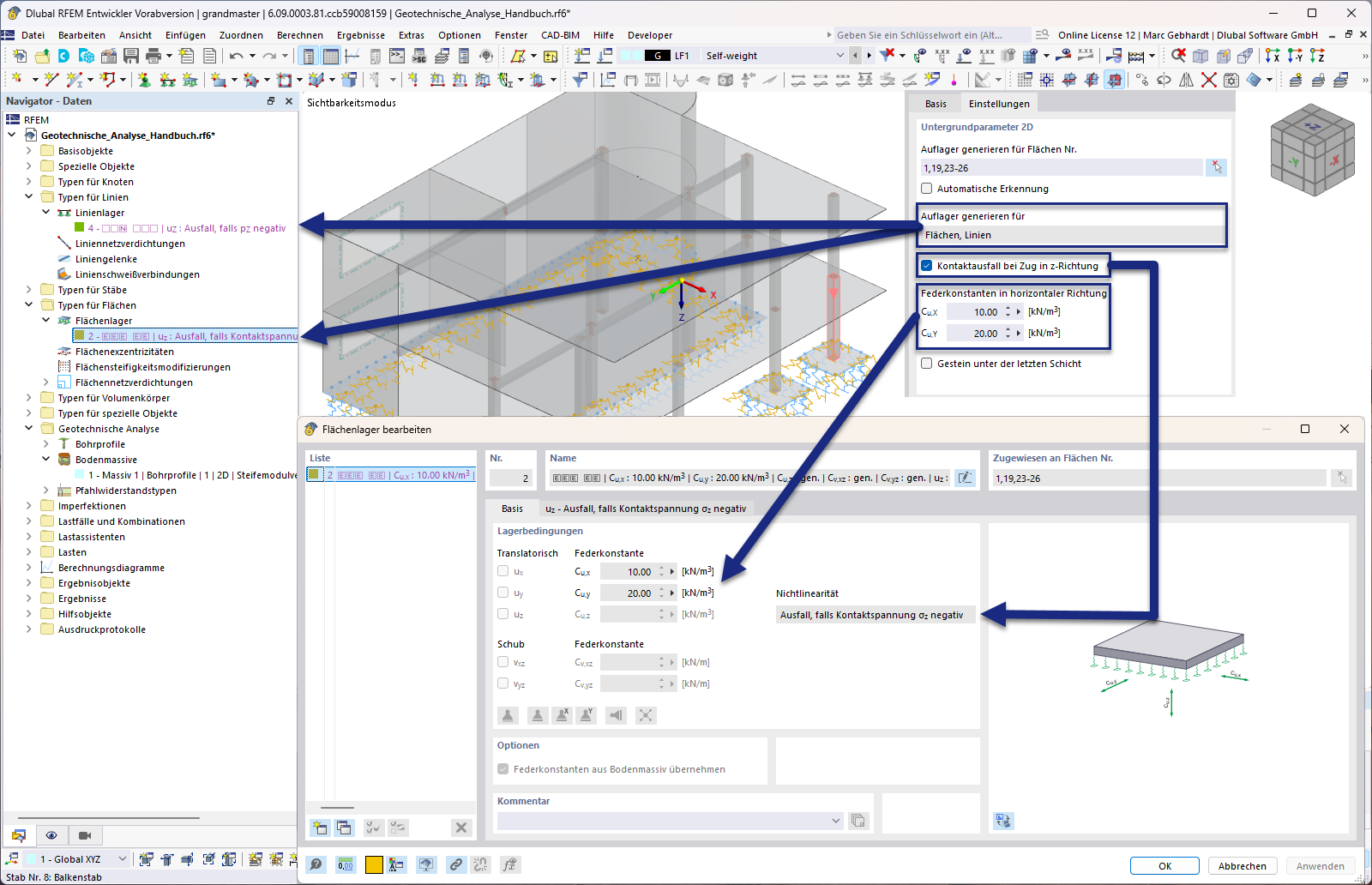

The image shows the configuration of the 2D subsoil parameters from which the support properties are derived. Parameters such as soil, soil massif, elastic half-space, stiffness modulus method, and spring stiffness are displayed. The settings are used to calculate the support reactions in the subsoil.
