Model 005513 | Structure Stability: Cantilever Beam Consisting of Surface Elements
Model 005513 – Cantilever composed of surface elements | Structure stability | Buckling shape | Buckling mode

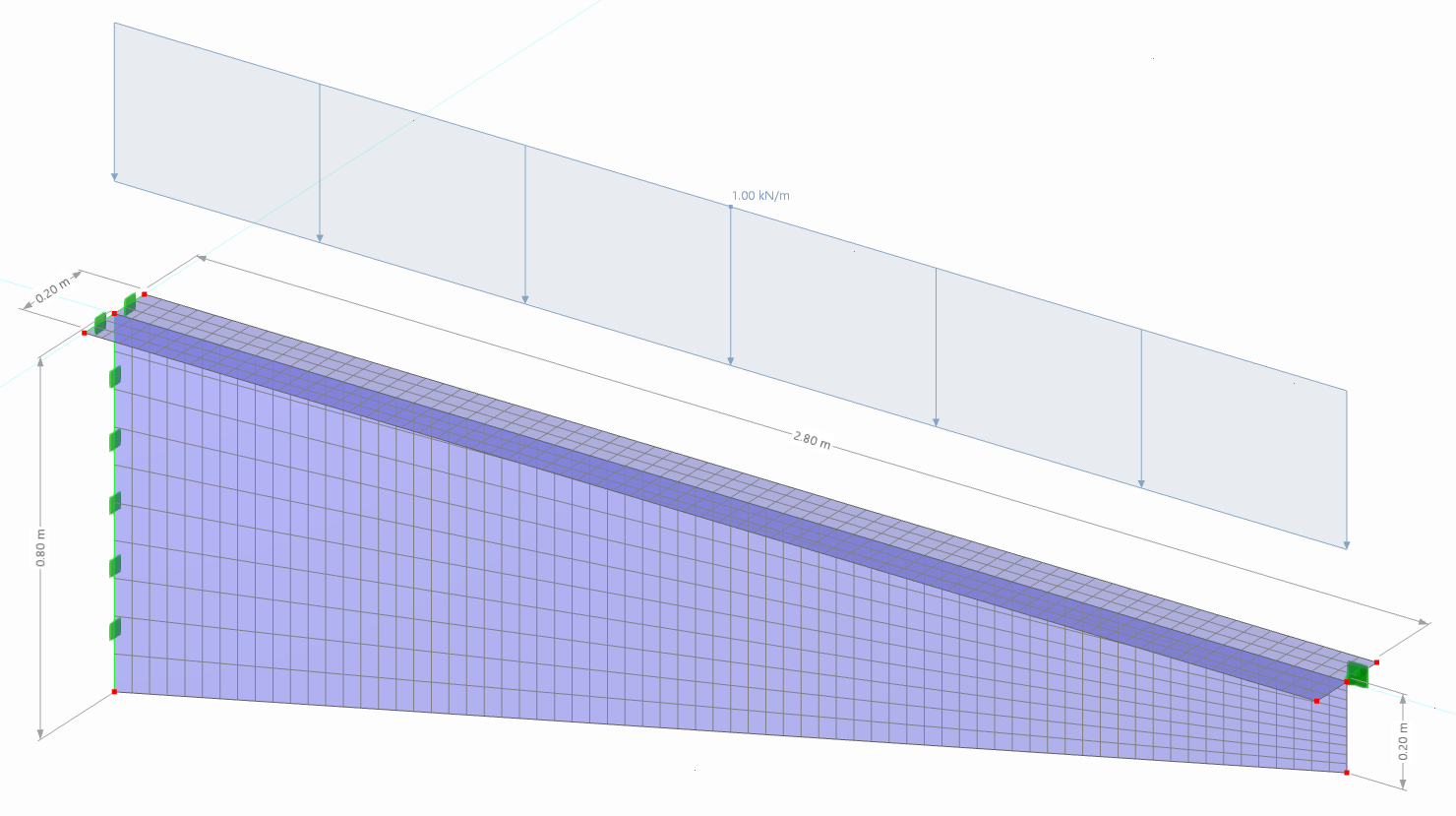

The model 005513 shows a cantilever composed of surface elements. Buckling and buckling modes are used to demonstrate the stability analysis. Failure modes and the critical load are also discussed. The display illustrates the interactions of the elements in the context of structural stability analysis.
3D Model
Specifications
| Number of Nodes | 8 |
| Number of Lines | 10 |
| Number of Members | 0 |
| Number of Surfaces | 3 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.196 t |
| Dimensions (Metric) | 2.800 x 0.790 x 0.200 m |
| Dimensions (Imperial) | 9.19 x 2.59 x 0.66 feet |
