RFEM Model of Steel Tank (Variant 1) with Surface Stresses | © TIM Global Engineering
RFEM Model of Steel Tank (Variant 1) with Surface Stresses

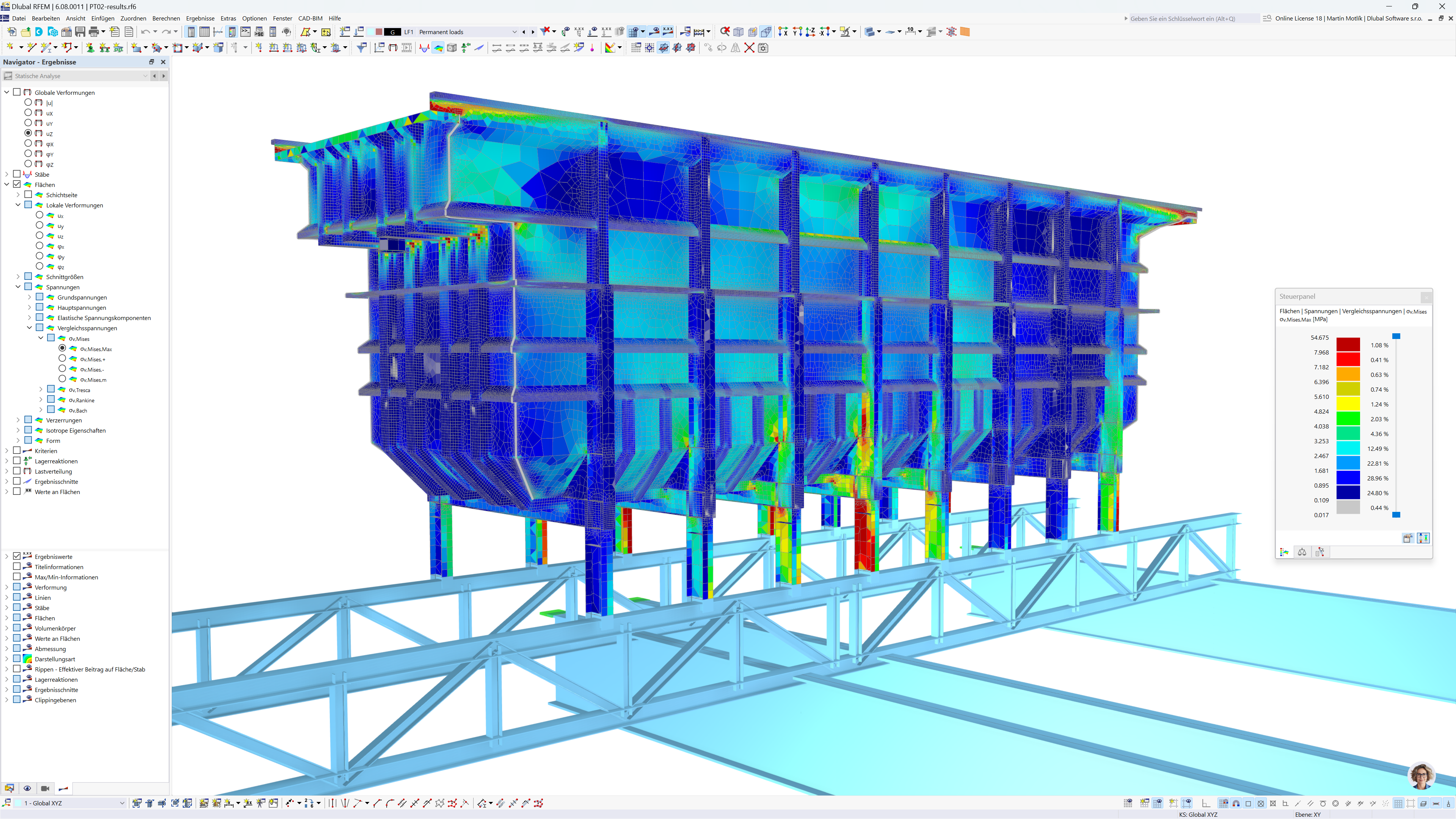

The image shows an RFEM model of a steel tank, visualizing the stress distribution on the surfaces. This display mode allows for a detailed analysis of the stresses acting on the structure and helps engineers identify critical areas.
Used in
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 3329 |
| Number of Lines | 6695 |
| Number of Members | 248 |
| Number of Surfaces | 2049 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 0 |
| Total Weight | 19.348 t |
| Dimensions (Metric) | 13.900 x 6.372 x 20.000 m |
| Dimensions (Imperial) | 45.6 x 20.91 x 65.62 feet |
