Model 005527 | Macron-Bibb County Middle Georgia Regional Airport Terminal
Macron-Bibb County Airport Terminal Model 005527 | RFEM Analysis | EQUILIBRIUM Simulation

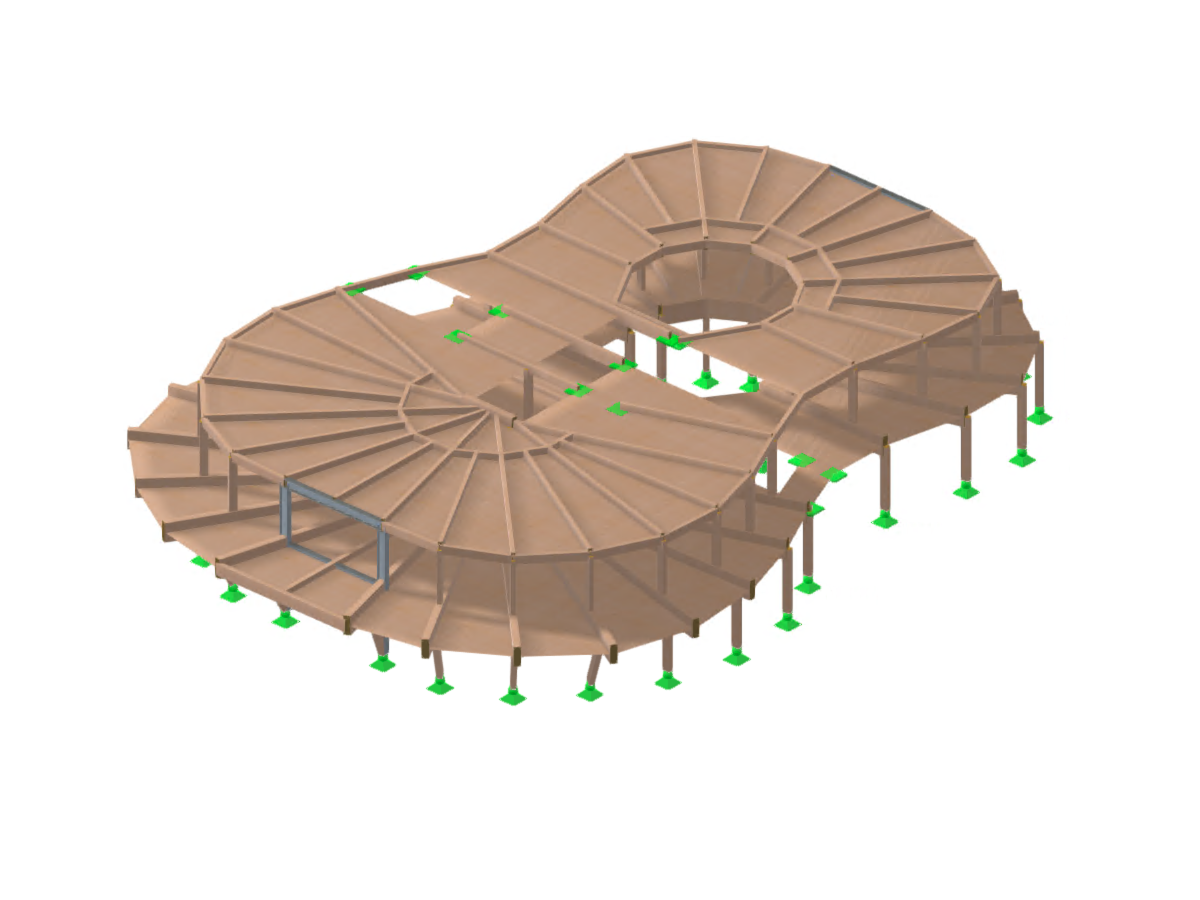

The image shows the 3D Model 005527 of an airport terminal at the Macron-Bibb County Middle Georgia Regional Airport. The model is shown in its structural design and was created as part of a structural analysis using RFEM and EQUILIBRIUM.
Used in
3D Model
Specifications
| Anzahl Knoten | 312 |
| Anzahl Linien | 487 |
| Anzahl Stäbe | 387 |
| Anzahl Flächen | 118 |
| Anzahl Volumenkörper | 0 |
| Anzahl Lastfälle | 8 |
| Anzahl Lastkombinationen | 4 |
| Anzahl Ergebniskombinationen | 0 |
| Gesamtgewicht | 190.990 t |
| Abmessungen (metrisch) | 28.770 x 6.000 x 38.652 m |
| Abmessungen (imperial) | 94.39 x 19.69 x 126.81 feet |
