Model 005528 | Gabled Roof Truss Made of Glued-Laminated Timber
Model 005528 | Glued-Laminated Timber Gabled Roof Truss with Structural Analysis

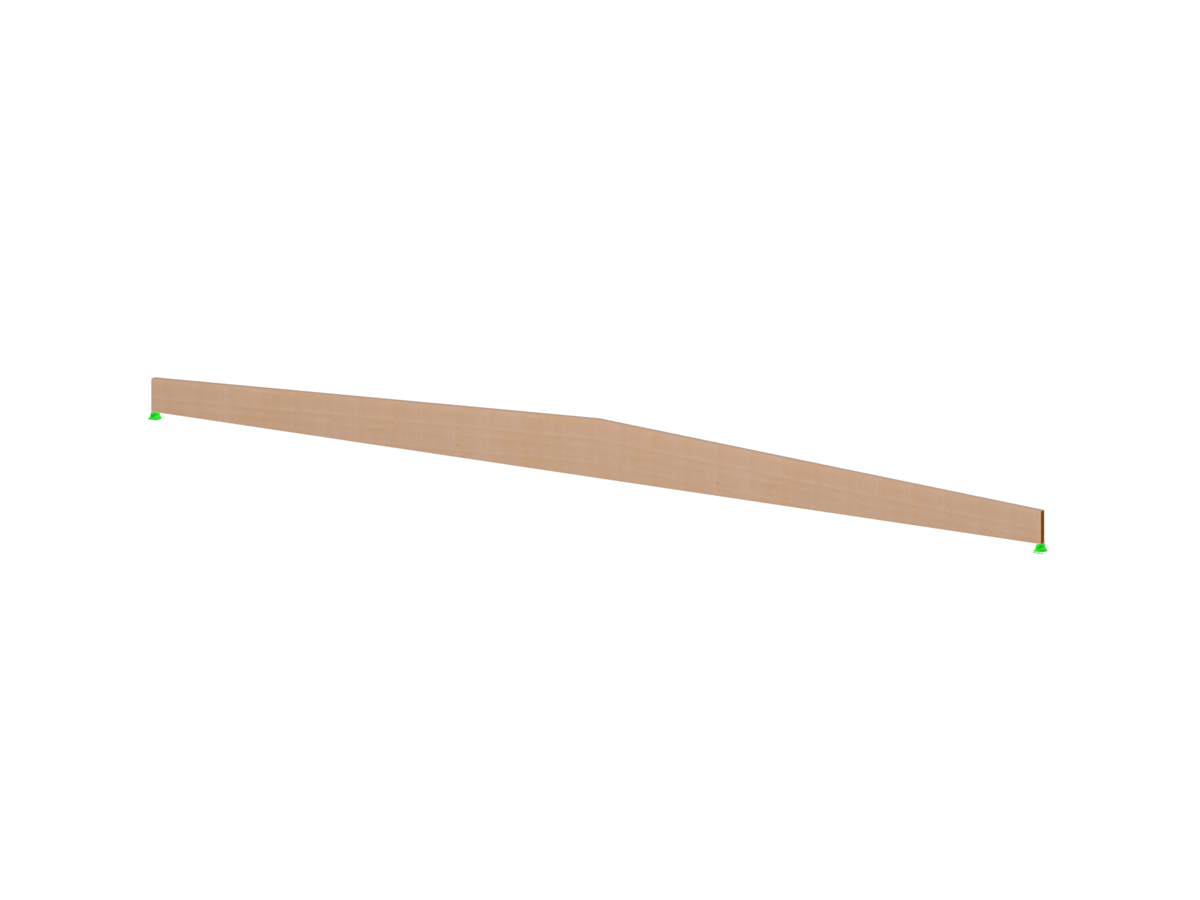

The image shows a glued-laminated timber gabled roof truss represented in a structural analysis. The structural design may have been carried out using Dlubal software to check the load distribution and stability of the roof truss. Such analyses are crucial for determining the load-bearing capacity and deformation properties of the timber truss. The use of glued-laminated timber allows for high strength and dimensional stability, which is ideal for large spans.
3D Model
Specifications
| Number of Nodes | 8 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 7.688 tons |
| Dimensions (Metric) | 41,000 x 1,205 x 0,000 m |
| Dimensions (Imperial) | 134.51 x 3.95 x 0 feet |
