Steel Tower with Integrated Staircase: Model 005534

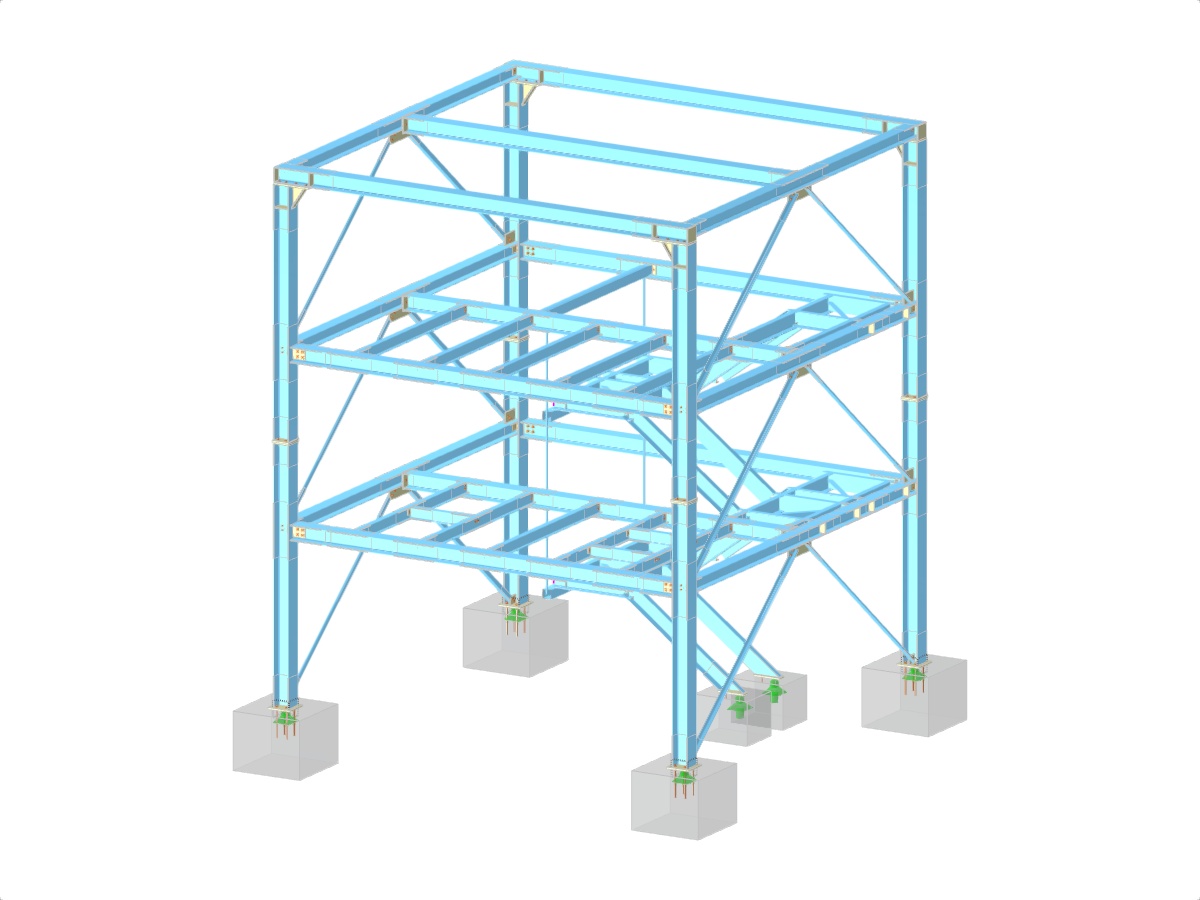

Steel tower with integrated staircase, detailed steel joints and robust foundation.
The image depicts Model 005534, a steel tower featuring an integrated staircase. The structure reveals precise steel joints and a robust foundation system. The staircase is incorporated into the vertical assembly to allow inter-level access. The design highlights modern techniques in steel construction.
3D Model
Specifications
| Number of Nodes | 129 |
| Number of Lines | 205 |
| Number of Members | 205 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 15 |
| Number of Load Combinations | 26 |
| Number of Result Combinations | 1 |
| Total Weight | 8.226 tons |
| Dimensions (Metric) | 6,000 x 7,200 x 6,000 m |
| Dimensions (Imperial) | 19.69 x 23.62 x 19.69 feet |
