Glass Cantilever Canopy Model

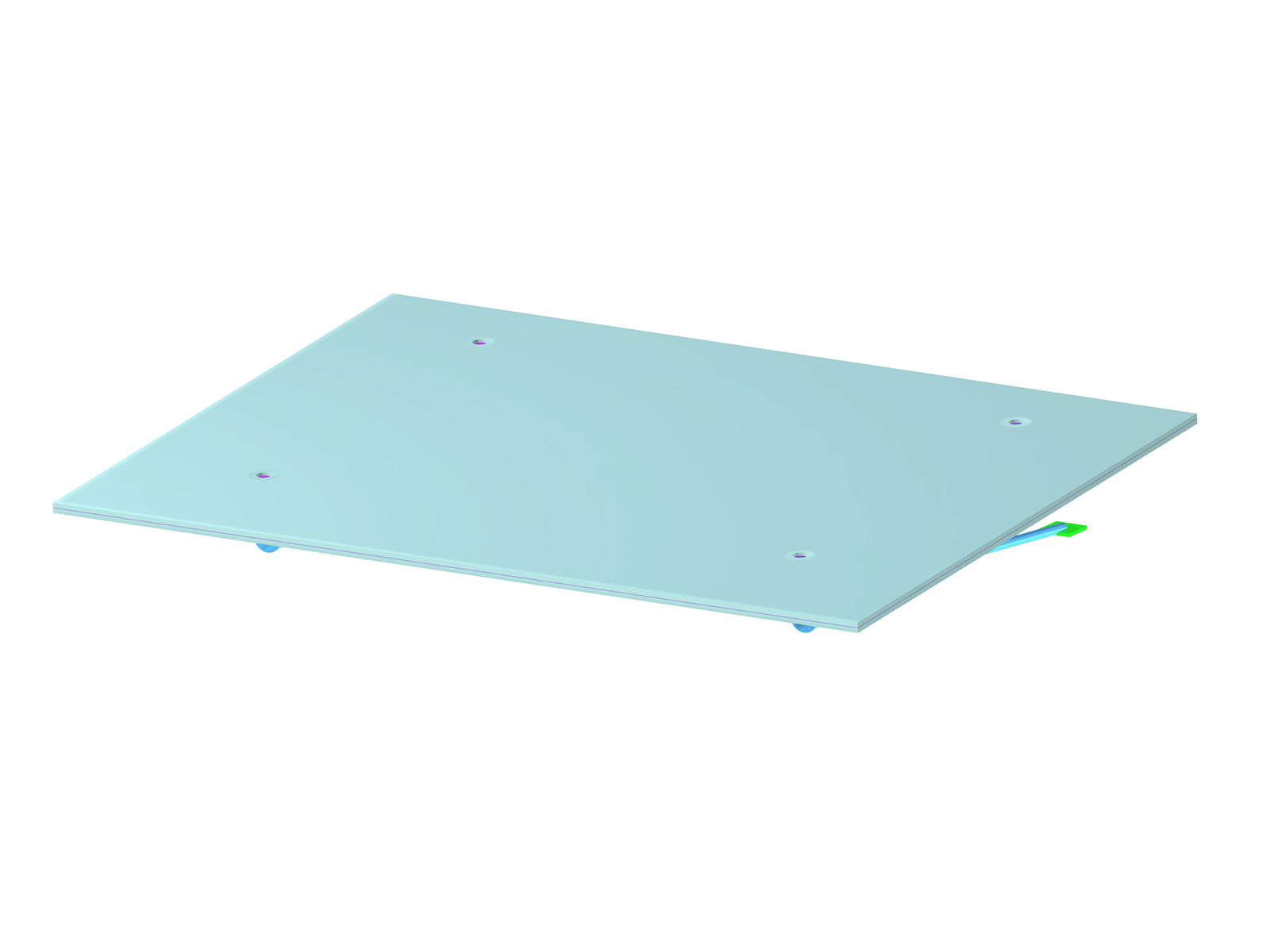

Glass cantilever canopy with four anchorage points in RFEM 6 depicting load transfer nodes.
The model demonstrates a glass canopy supported by a cantilever system with the glass securely fastened at four discrete anchorage points, accurately representing the load transfer through connection nodes. It is implemented in RFEM 6, utilizing the specialized Glass Design add-on to ensure clarity in structural behavior.
Used in
3D Model
Specifications
| Number of Nodes | 79 |
| Number of Lines | 134 |
| Number of Members | 14 |
| Number of Surfaces | 81 |
| Number of Solids | 16 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 0.079 tons |
| Dimensions (Metric) | 1,500 x 0,216 x 1,096 m |
| Dimensions (Imperial) | 4.92 x 0.71 x 3.6 feet |
