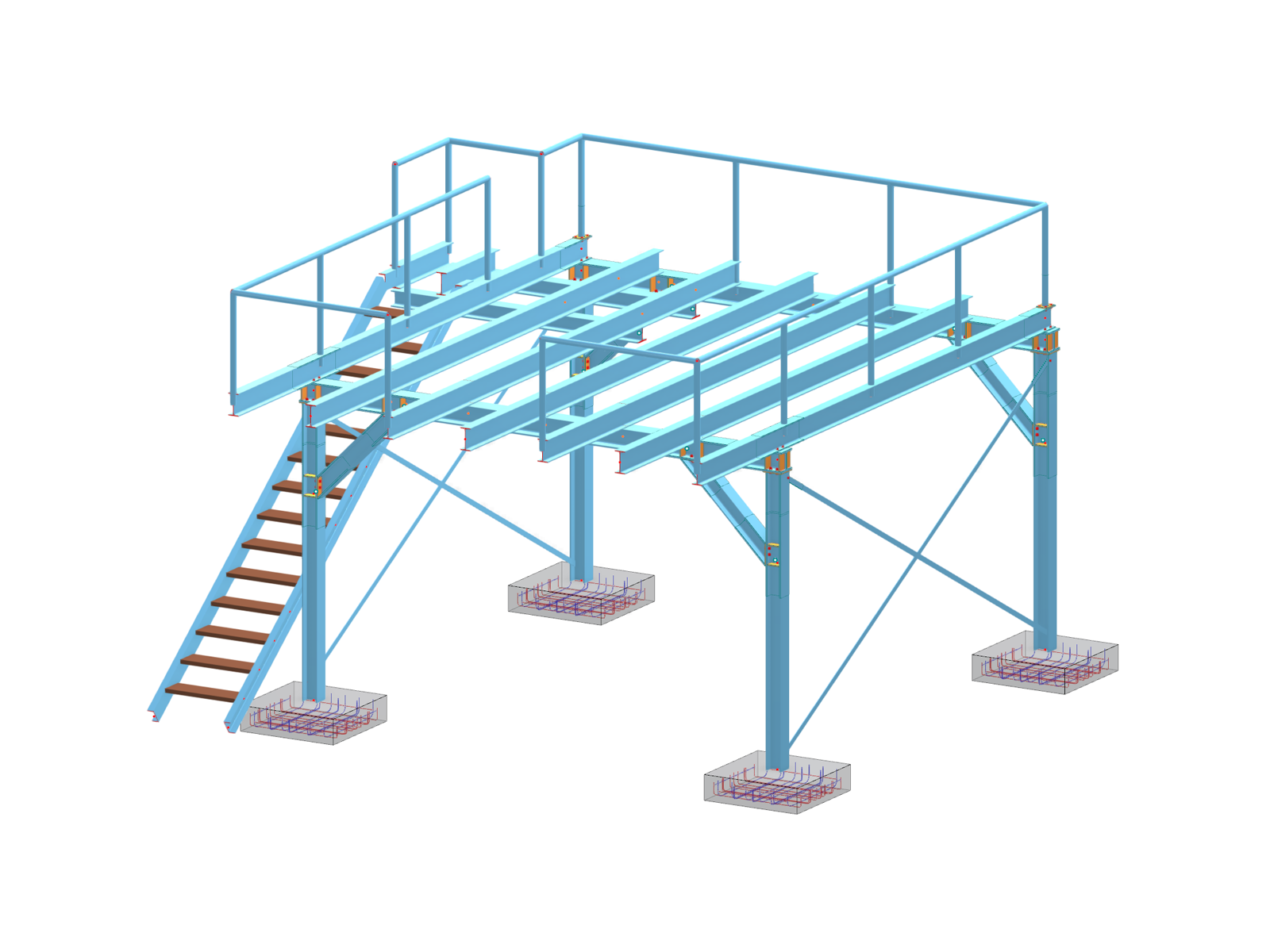

Steel Stage Structure with Steel Details and Reinforced Concrete Foundations
Steel stage structure featuring intricate steel details with a reinforced concrete foundation
The image shows a steel stage structure with clearly defined steel components. Reinforced concrete foundations are visible, providing strong support. Steel connections and joints are detailed, highlighting precise engineering construction techniques.
3D Model
Specifications
| Number of Nodes | 100 |
| Number of Lines | 118 |
| Number of Members | 118 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 9 |
| Number of Result Combinations | 0 |
| Total Weight | 3.426 tons |
| Dimensions (Metric) | 6.000 x 4.300 x 6.500 m |
| Dimensions (Imperial) | 19.69 x 14.11 x 21.33 feet |
