White-Tank Foundation Design for Residential Building
Reinforced concrete foundation with pile and slab elements designed as a white tank structure using RFEM and SOILIN.

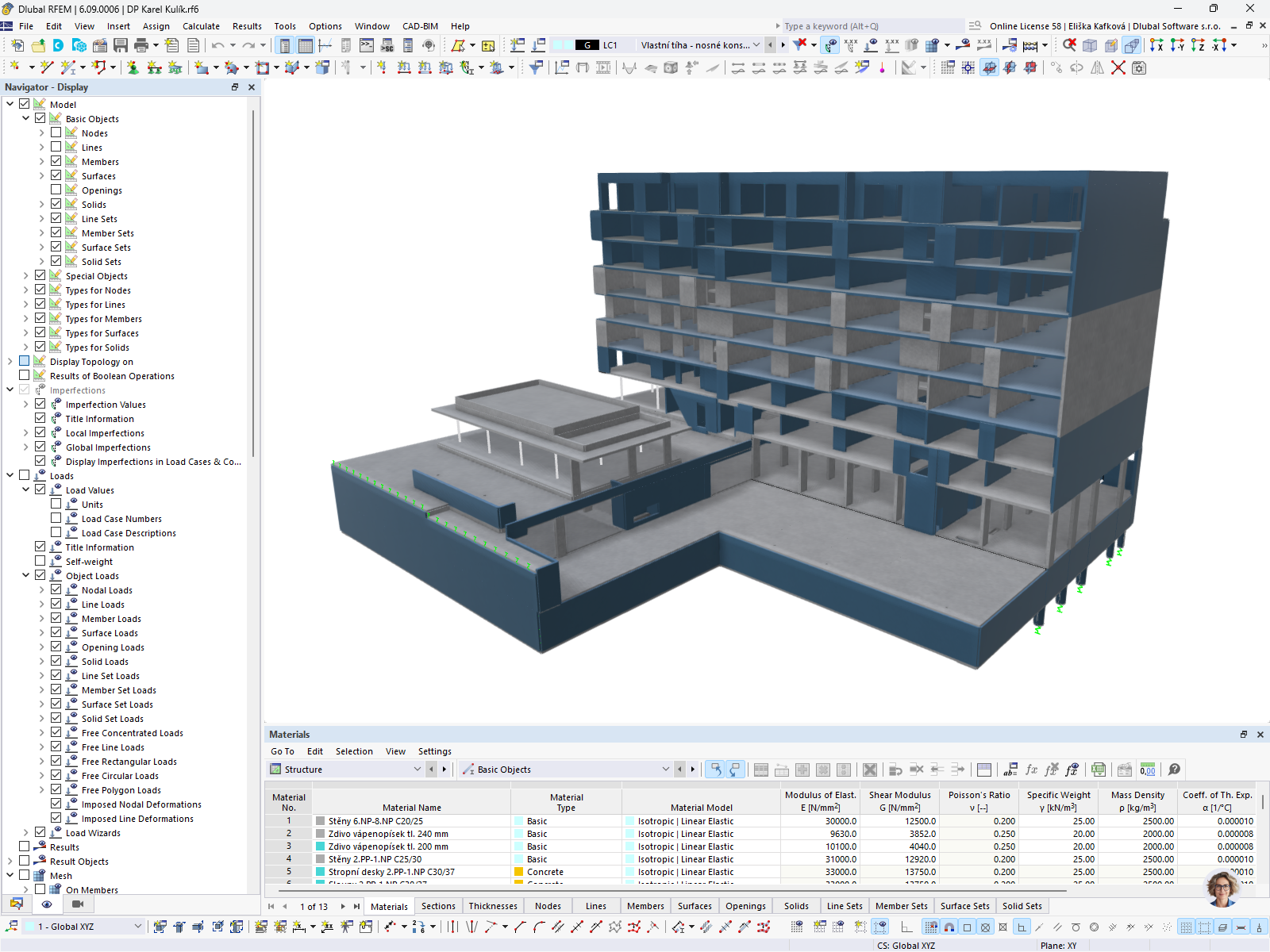

The image depicts a reinforced concrete foundation for a multi-story residential building, conceptualized as a watertight white tank. It shows a composite foundation system integrating a foundation slab with pile supports. The analysis of internal forces was carried out using RFEM with the SOILIN add-on module, evaluating both ultimate and serviceability limit states with special attention to early-age concrete effects.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 4944 |
| Number of Lines | 7255 |
| Number of Members | 414 |
| Number of Surfaces | 1315 |
| Number of Solids | 102 |
| Number of Load Cases | 22 |
| Number of Load Combinations | 181 |
| Number of Result Combinations | 4 |
| Total Weight | 17033.610 tons |
| Dimensions (Metric) | 56,546 x 36,370 x 50,551 m |
| Dimensions (Imperial) | 185.52 x 119.32 x 165.85 feet |
