Vertical Result Line with Seismic Shear
The display shows vertical result lines for evaluating horizontal transverse loads and the total seismic shear.

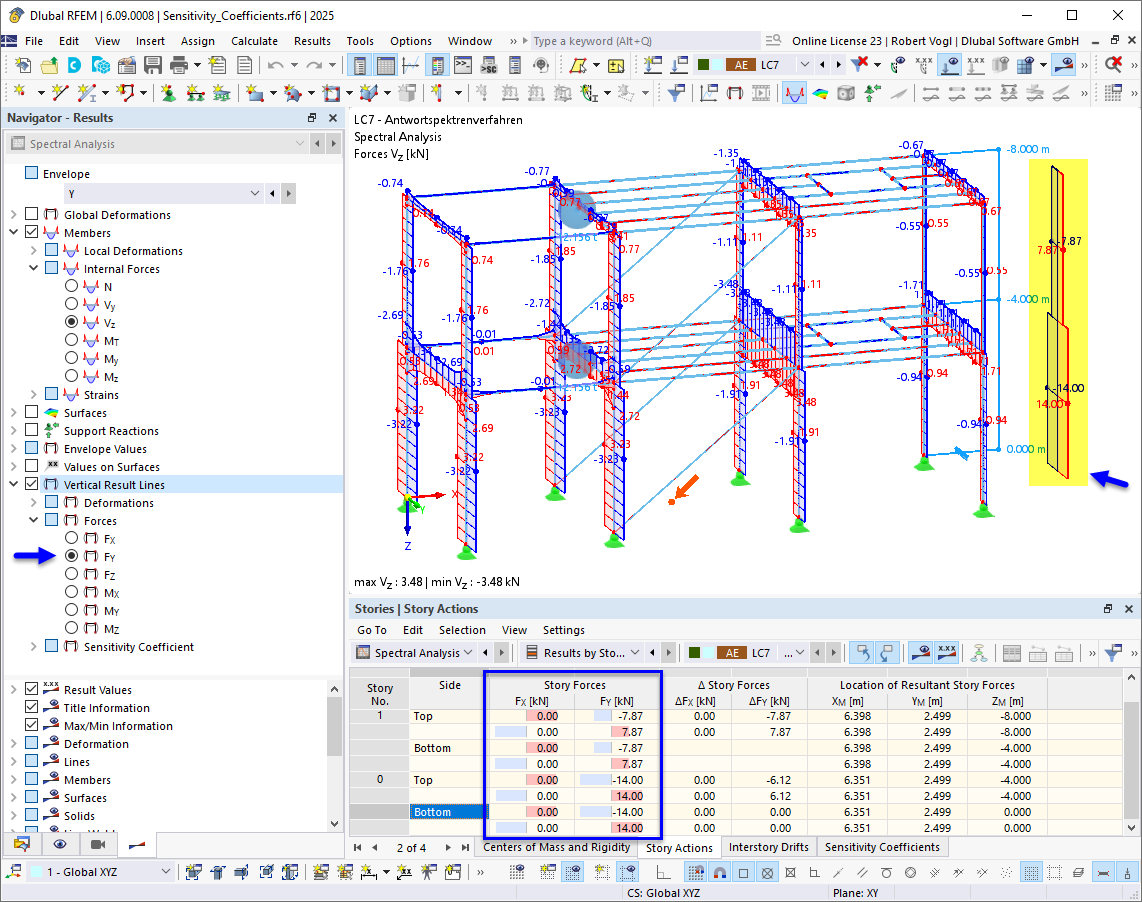

The image shows vertical result lines that graphically evaluate the story forces and the seismic shear. Horizontally integrated lateral loads F_X and F_Y are displayed. Expanding the "Results" drop-down menu allows for selecting the "Forces" category. The total seismic shear is displayed at the lowest point of the result line.
