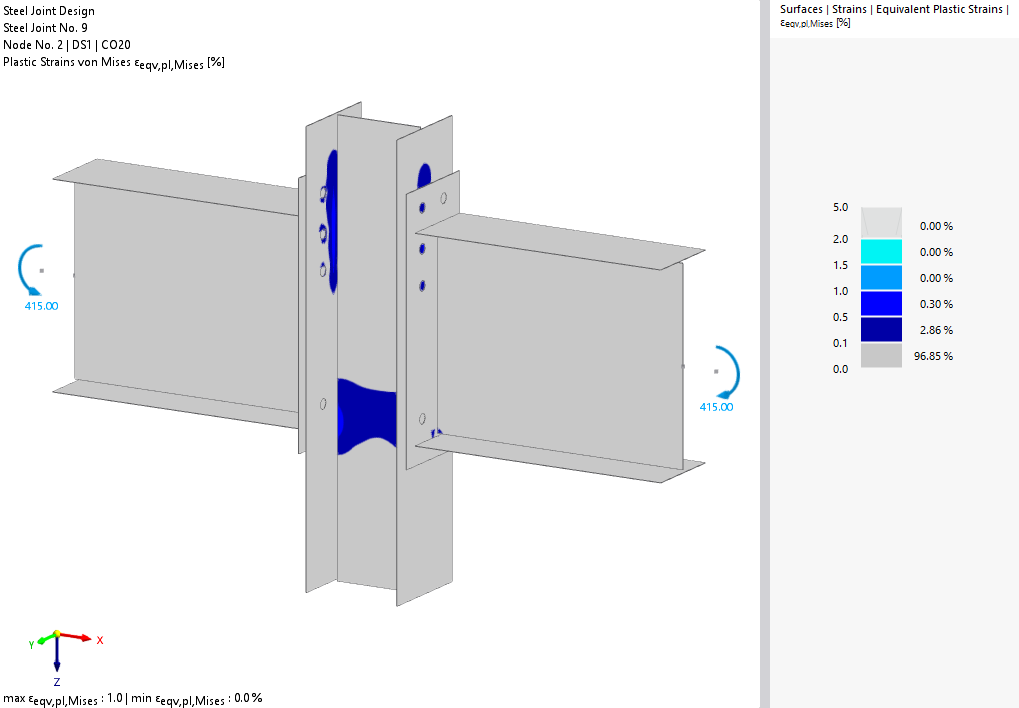

Plastic Strain Shown on the Joint Geometry

The image displays plastic strain distribution on a joint structure with color gradients indicating deformation intensity.
This image illustrates the distribution of plastic strain on a joint structure, highlighting areas of varying deformation intensities. The use of color gradients visually represents the intensity and spread of strain on the joint, aiding in the analysis of potential stress concentrations and failure points in the structure. This type of visualization is crucial for understanding material behavior under load conditions and optimizing design.
