Concrete Beam with Prestressed Reinforcement Settings in Dialog
Concrete beam model with prestressed reinforcement and a settings dialog for tendon members in RFEM 6.

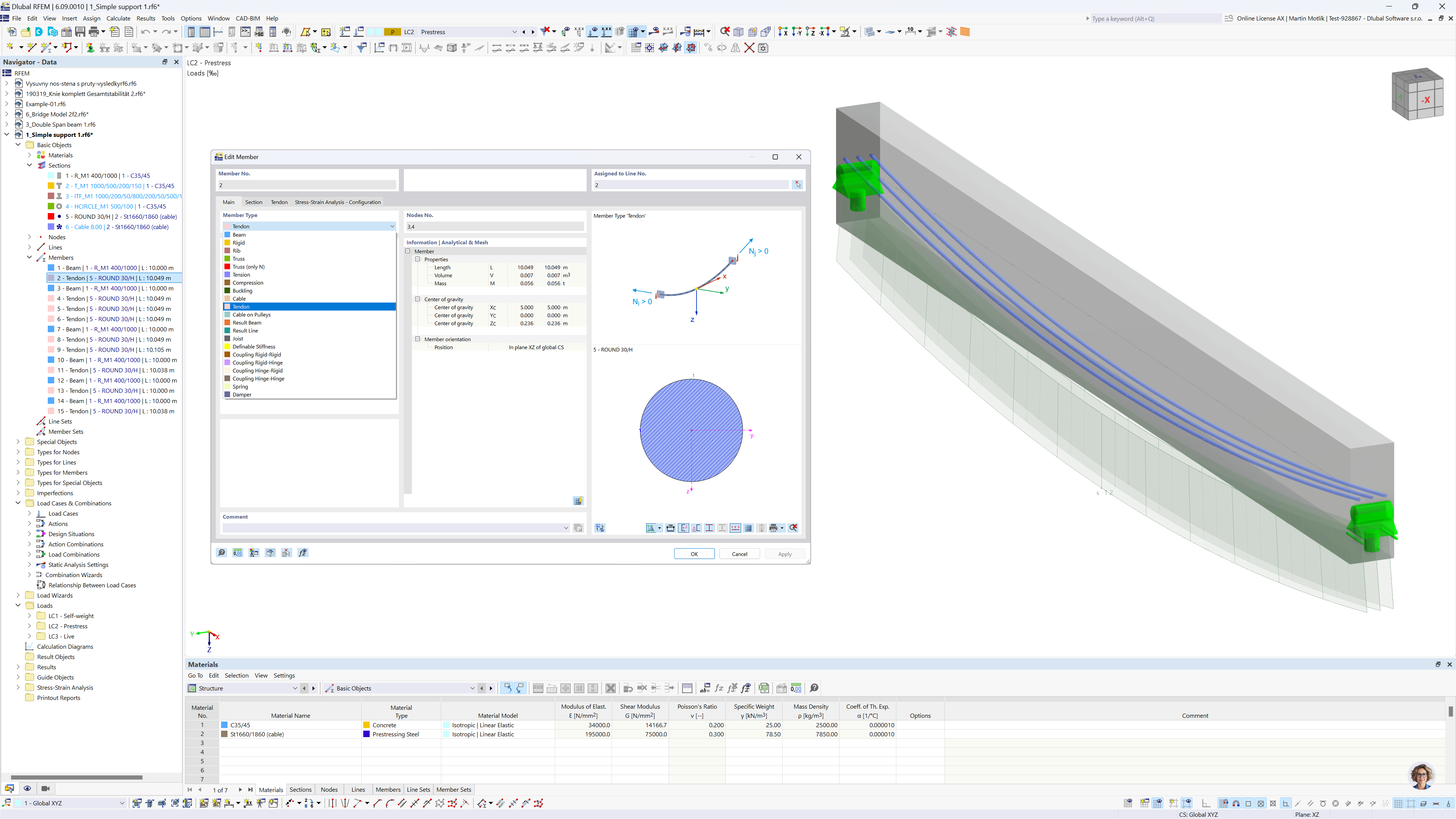

The image displays a model of a concrete beam enhanced with prestressed reinforcement using RFEM 6's Tendons add-on. It features a dialog window illustrating the internal settings for members classified as the tendon type.
3D Model
Specifications
| Number of Nodes | 36 |
| Number of Lines | 15 |
| Number of Members | 15 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 60.502 tons |
| Dimensions (Metric) | 25.000 x 20.250 x 0.240 m |
| Dimensions (Imperial) | 82.02 x 66.44 x 0.79 feet |
