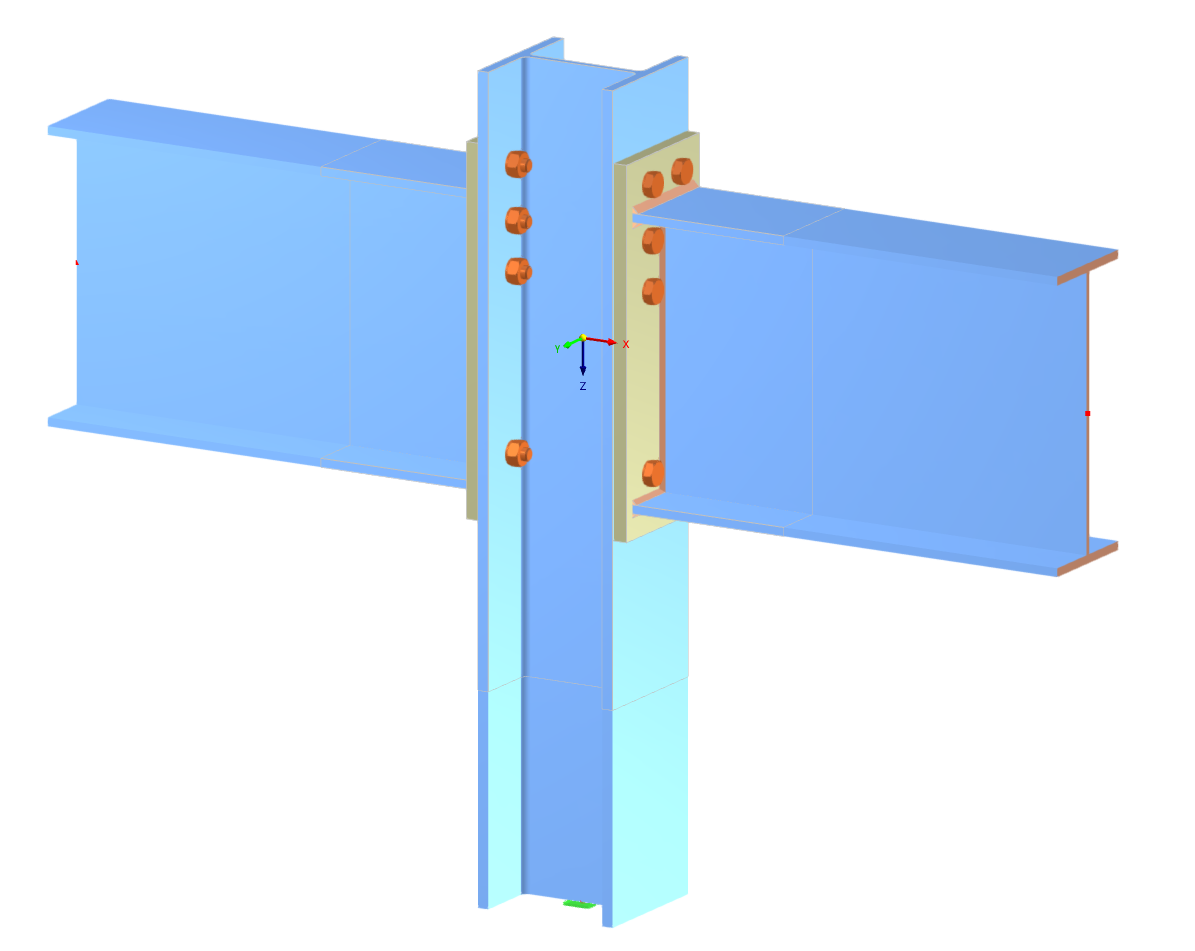

Model 005595 | Unstiffened Bolted End Plate Connection
The image illustrates the construction and assembly of an unstiffened bolted end plate connection. It details the geometric arrangement and dimensions relevant for proper joint formation in structural steel frameworks. Bolted connections like this one are critical for load transfer in multi-story buildings and industrial structures. The image demonstrates the practicality and simplicity of the configuration, significant in structural integrity.
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.144 tons |
| Dimensions (Metric) | 2,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
