Displaying Model Deformation During Calculation

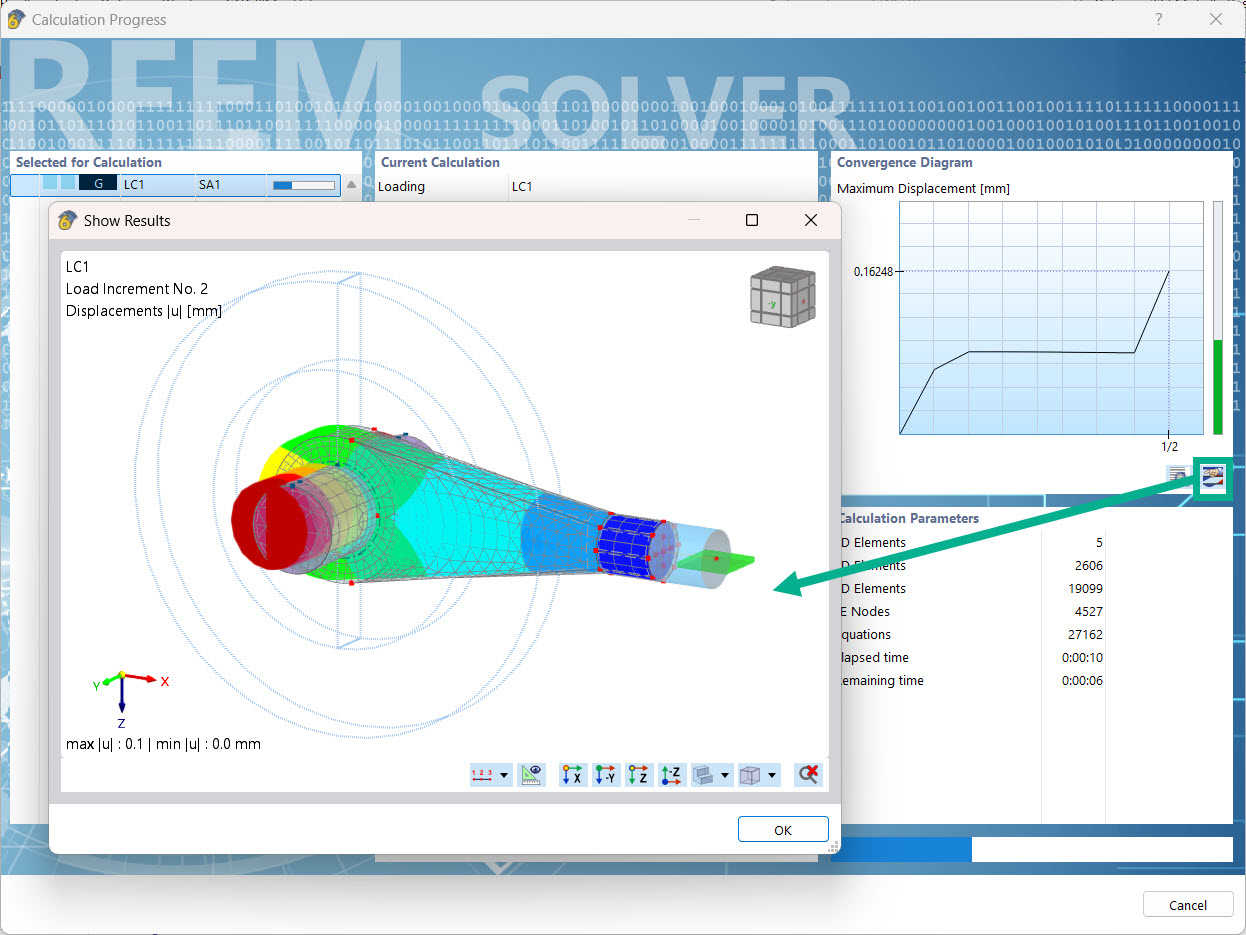

Display of model deformations in the analysis progress window of the program.

The image shows an exemplary graphical display of the model deformation during the calculation steps in the calculation progress window of a software. Such visualizations help engineers to analyze and understand dynamic behaviors of the model during the calculation process. This feature shows the displacements in real time and allows for the verification of model integrity.
