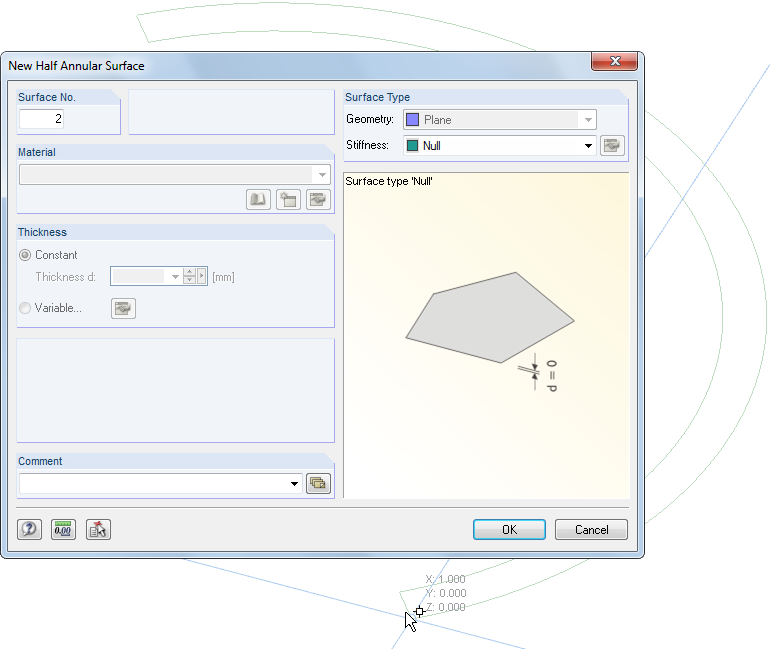

Image 11.146 Dialog Box "New Half-Annular Surface" for Graphic Definition of Surface

Dialog box for graphically defining a half-annular surface in a software application.
The dialog box shows a user interface for creating a half-annular surface. The graphical input allows for the geometry of the surface to be defined interactively. Various input boxes and options are visible that allow detailed customization. Such features help users to model specific surface types.
