Beam Response to Uneven Temperatures in RFEM 6

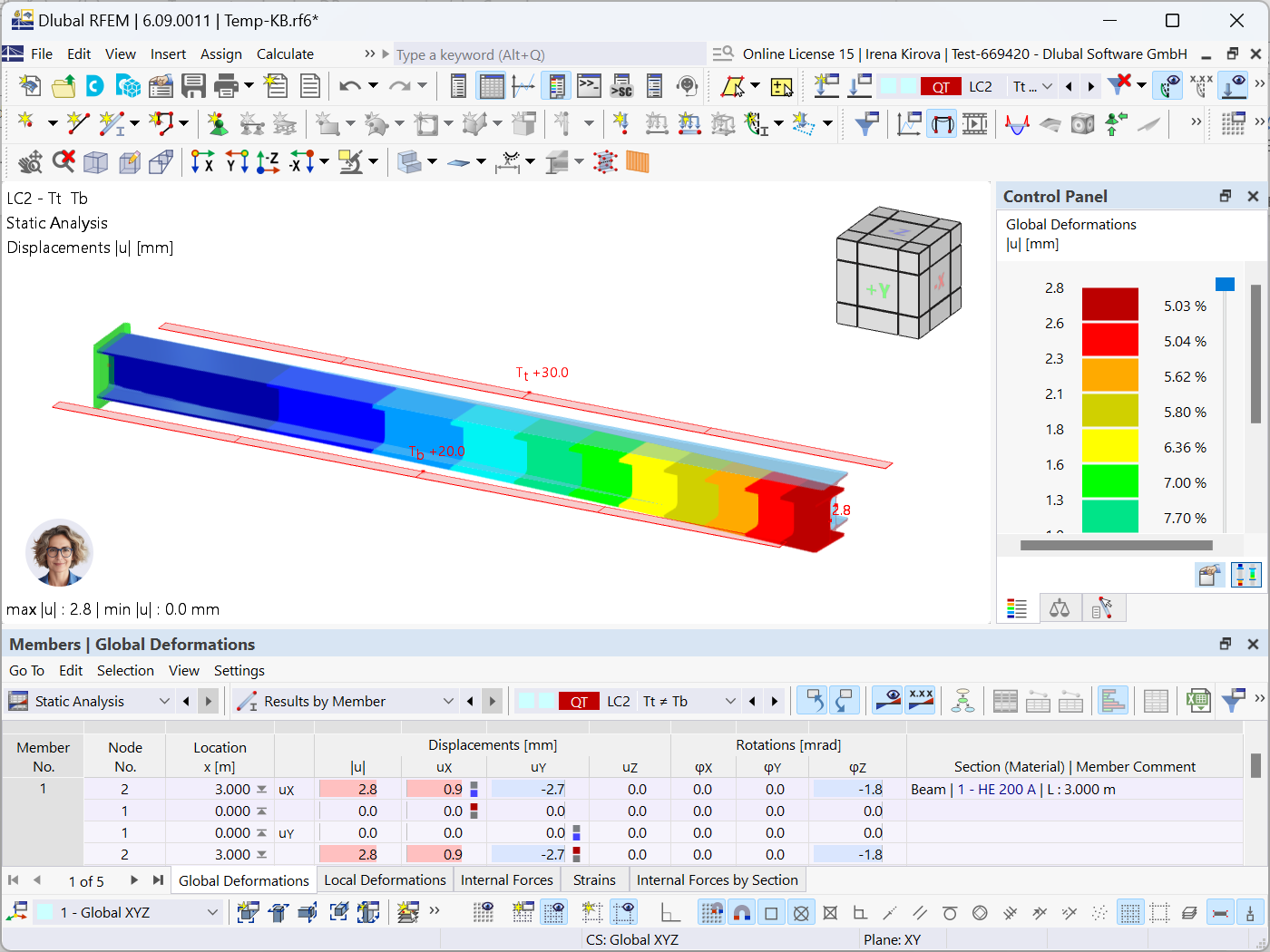

Beam deformation in RFEM 6 from differential top and bottom temperatures.

The image illustrates the expansion and bending of a beam in RFEM 6. This deformation results from differential temperatures applied to the top and bottom surfaces of the component. The simulation highlights the structural impact of temperature variations within this analysis software.
