Model 005620 | Temperature-Loaded Cantilever Beam Made of Steel
Steel cantilever beam model analyzing temperature effects using RFEM 6, showcasing structural analysis details.

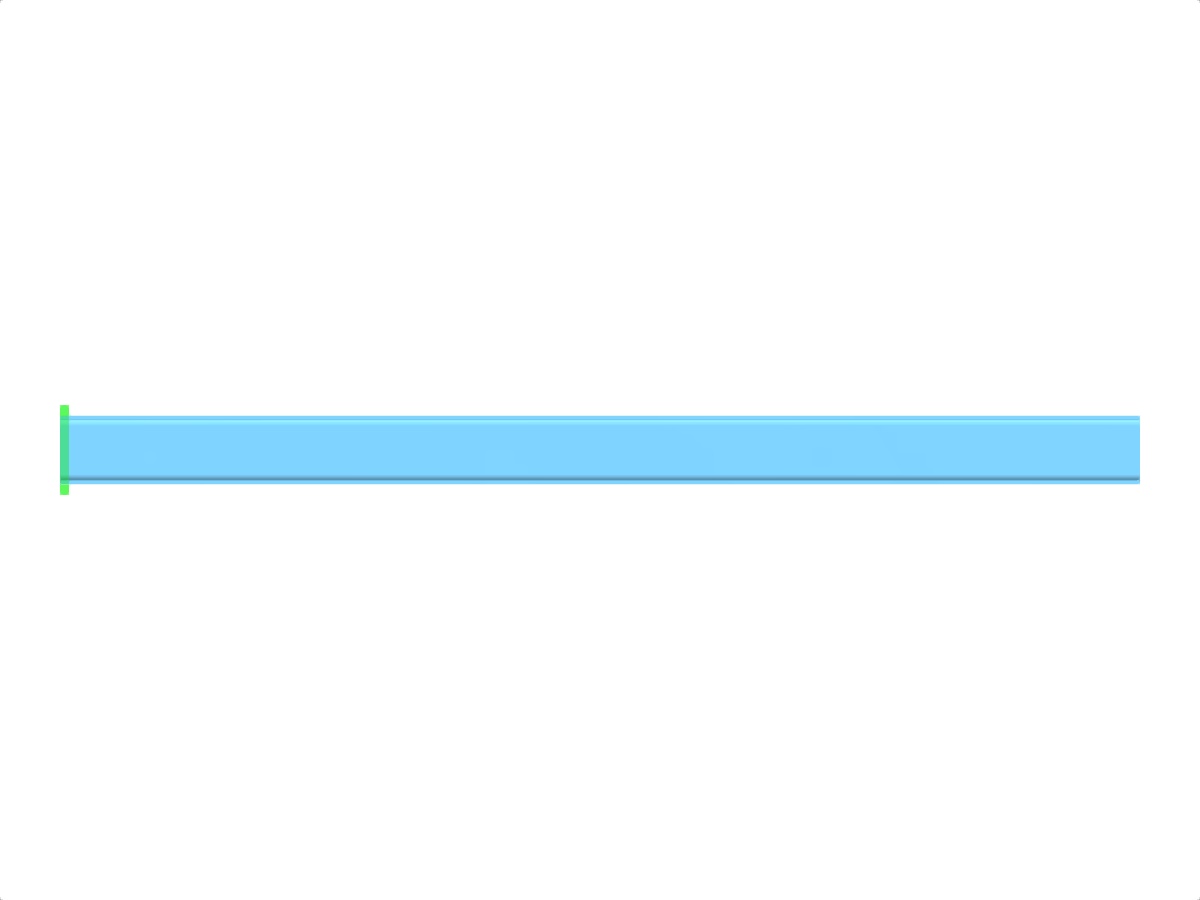

The image illustrates a structural model of a cantilever beam made of steel, subjected to temperature loading. The model is analyzed using RFEM 6 software, highlighting the temperature effects on the beam's structural behavior. It serves as an example of structural analysis for engineering purposes.
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.127 tons |
| Dimensions (Metric) | 3.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 9.84 x 0 x 0 feet |
