Connection Detail Between Launching Nose and Bridge Box Girder

Detailed view of the steel launching nose connected to the bridge box girder with equivalent stress distribution visible on surfaces.

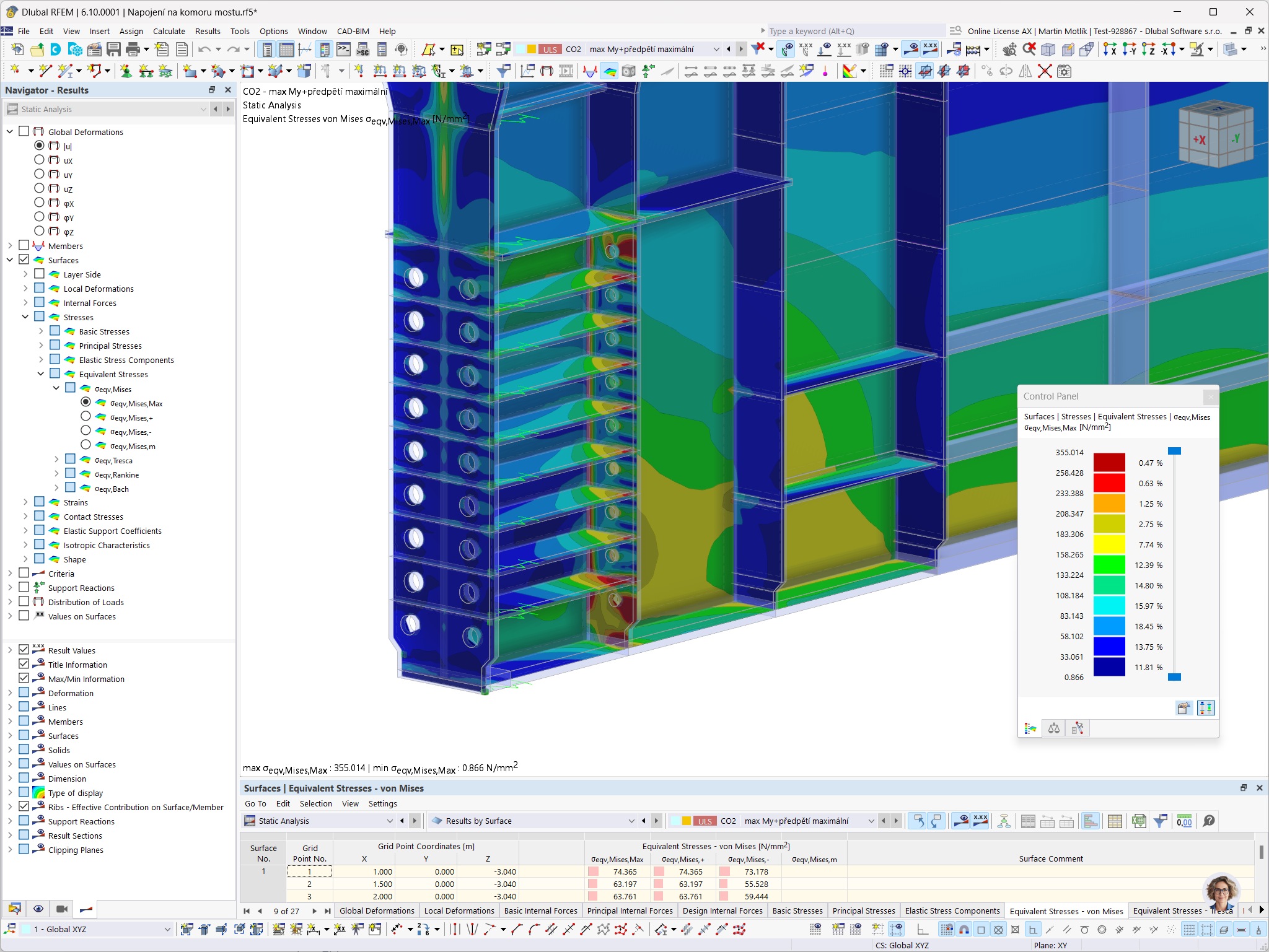

This image depicts the intricate connection detail between a steel launching nose and a bridge box girder, highlighting the equivalent stresses distributed across the surfaces. The model is a product of RFEM software expertise by engineers Petr Nečesal and David Marván from PIS PECHAL, s.r.o.
Used in
3D Model
No Download Possible Customer Project / View Only
More About 3D Model
Specifications
Number of Nodes 744
Number of Lines 1140
Number of Members 978
Number of Surfaces 20
Number of Load Cases 172
Number of Load Combinations 135
Number of Result Combinations 5
Total Weight 111.432 tons
Dimensions (Metric) 40.420 x 5.400 x 4.467 m
Dimensions (Imperial) 132.61 x 17.72 x 14.66 feet
Program Version 5.36.01
