Model 005637 | Column Base

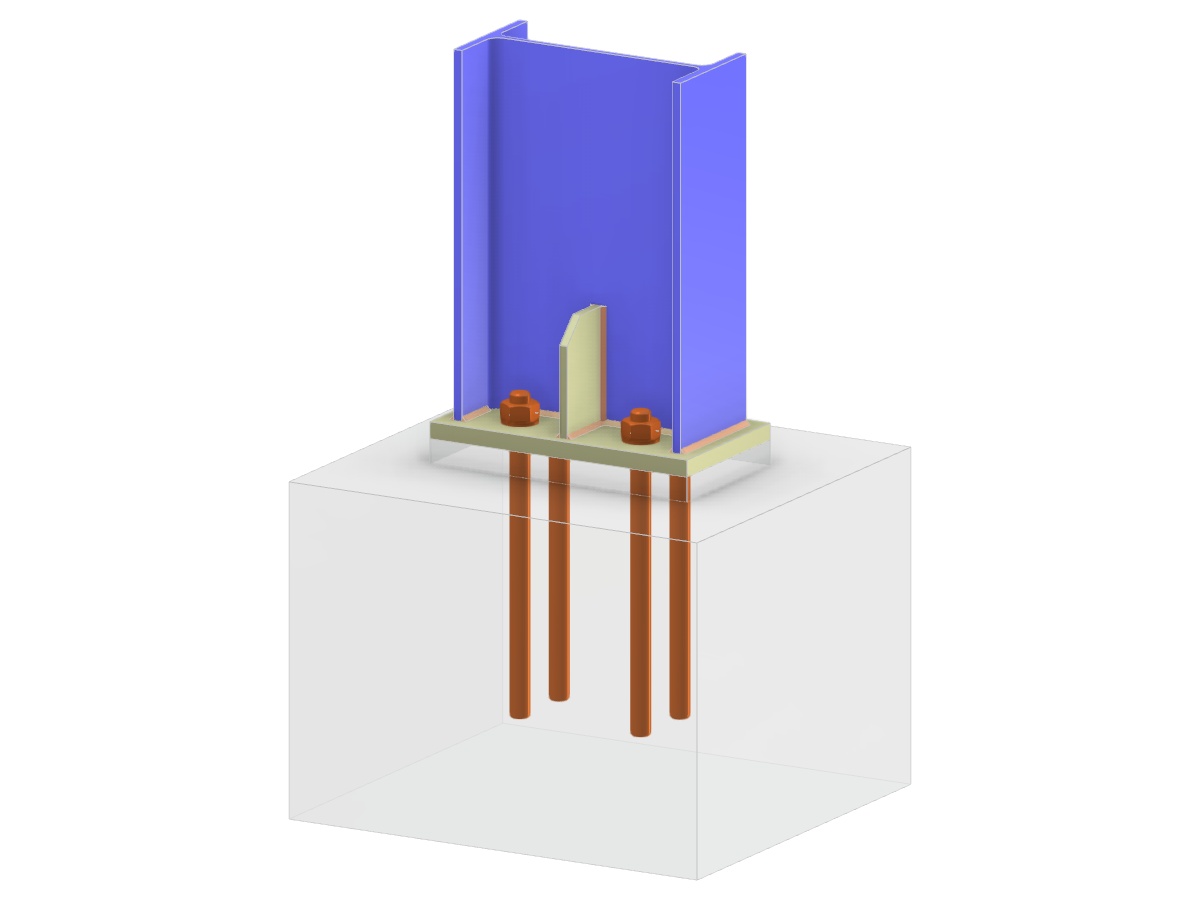

The image displays a structural model of a column base which includes a base plate and ribs connected to an I-section. The model showcases anchoring components that secure the base plate to the foundation. This setup is commonly used in civil engineering for stable structural foundations.
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.042 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
