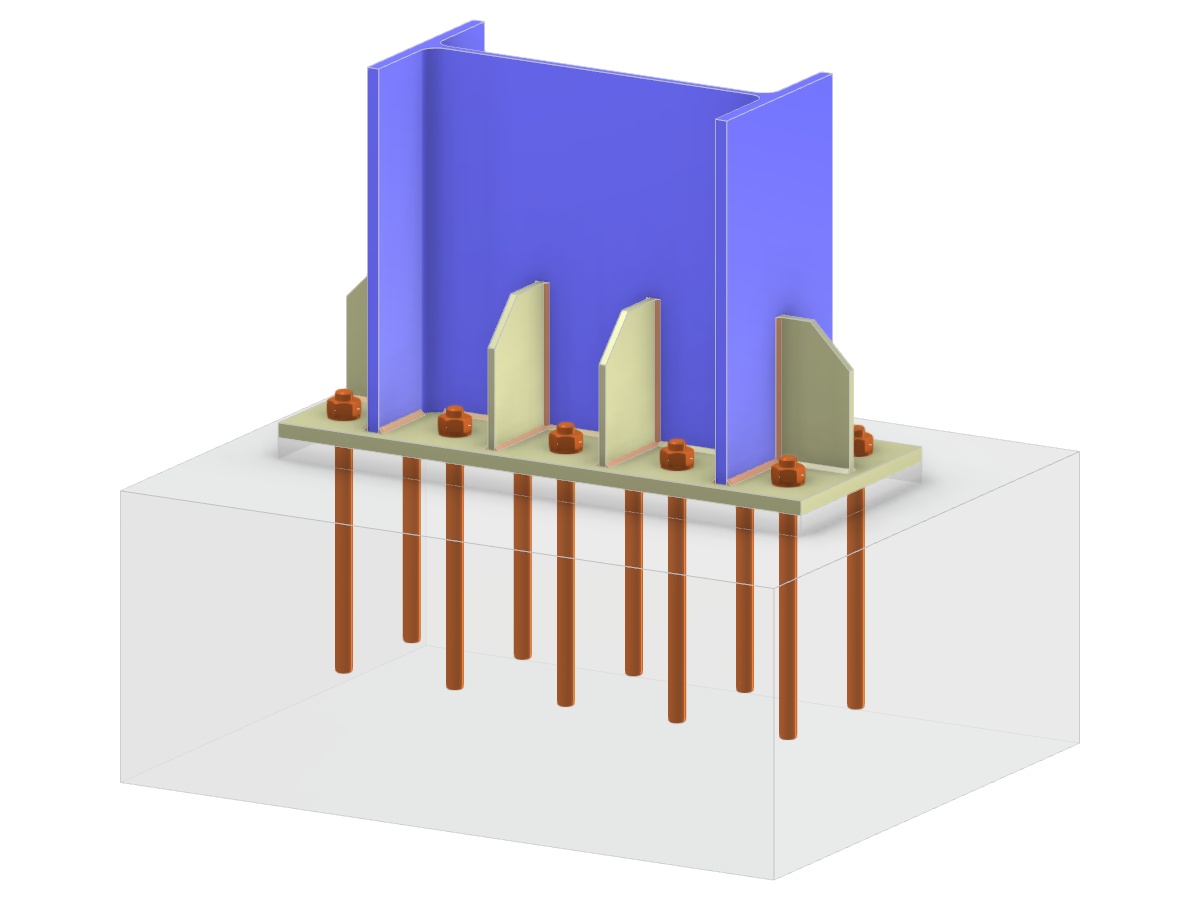

Model 005638 | Column Base
This image showcases a column base structure featuring a base plate, ribs, and an I-section for robust support. Anchoring elements are shown as integral parts of the setup, ensuring stability. The model represents a detailed view of these components working together in structural engineering applications. The setup highlights the precise arrangement of the base elements.
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.124 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
