Model 005644 | Column Base

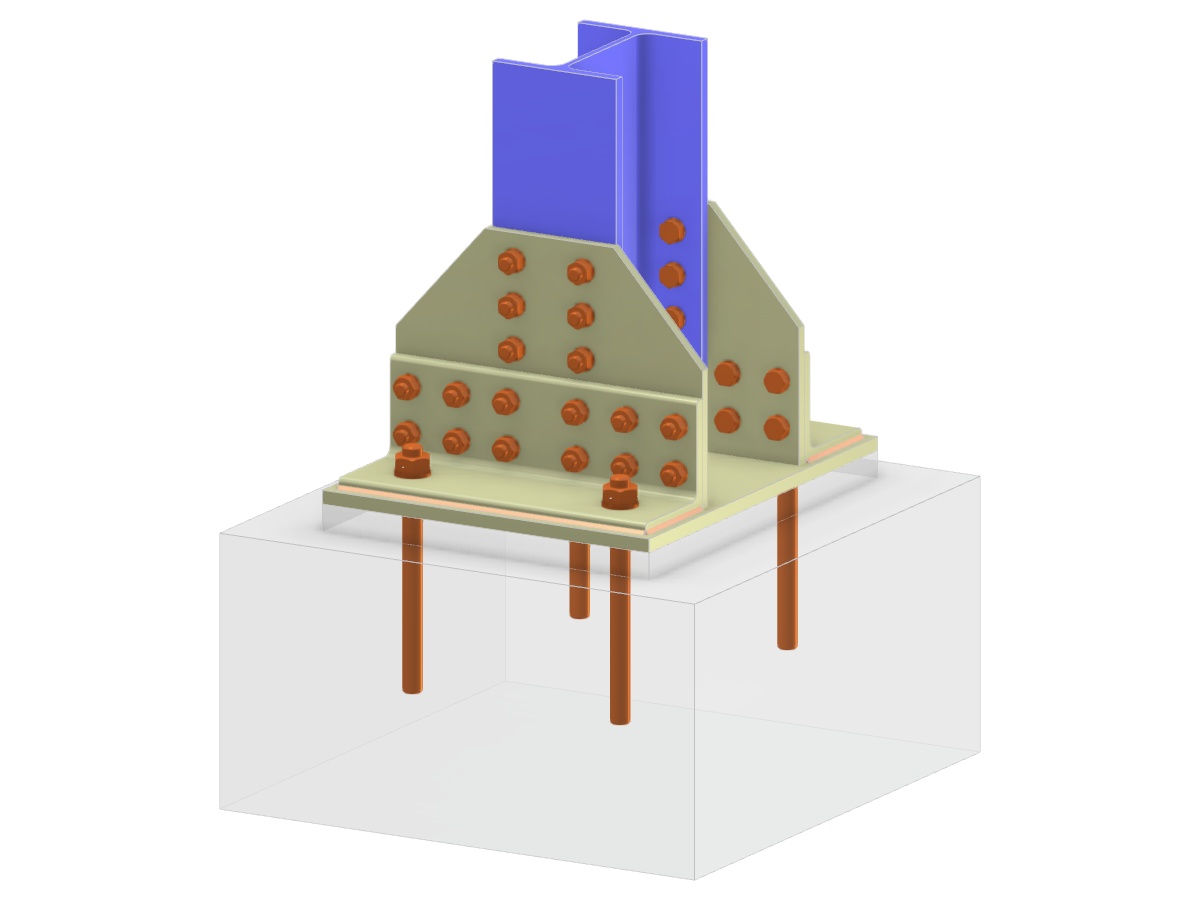

The image depicts a detailed design of a steel column base featuring a base plate supported by gusset plates and angles. An I-section connects to this setup, with bolted connections clearly visible. The anchoring system is shown, demonstrating how the column is secured to the foundation. This configuration is typical in structural steel applications, providing stability and load distribution.
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.111 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
