Model 005646 | Column Base

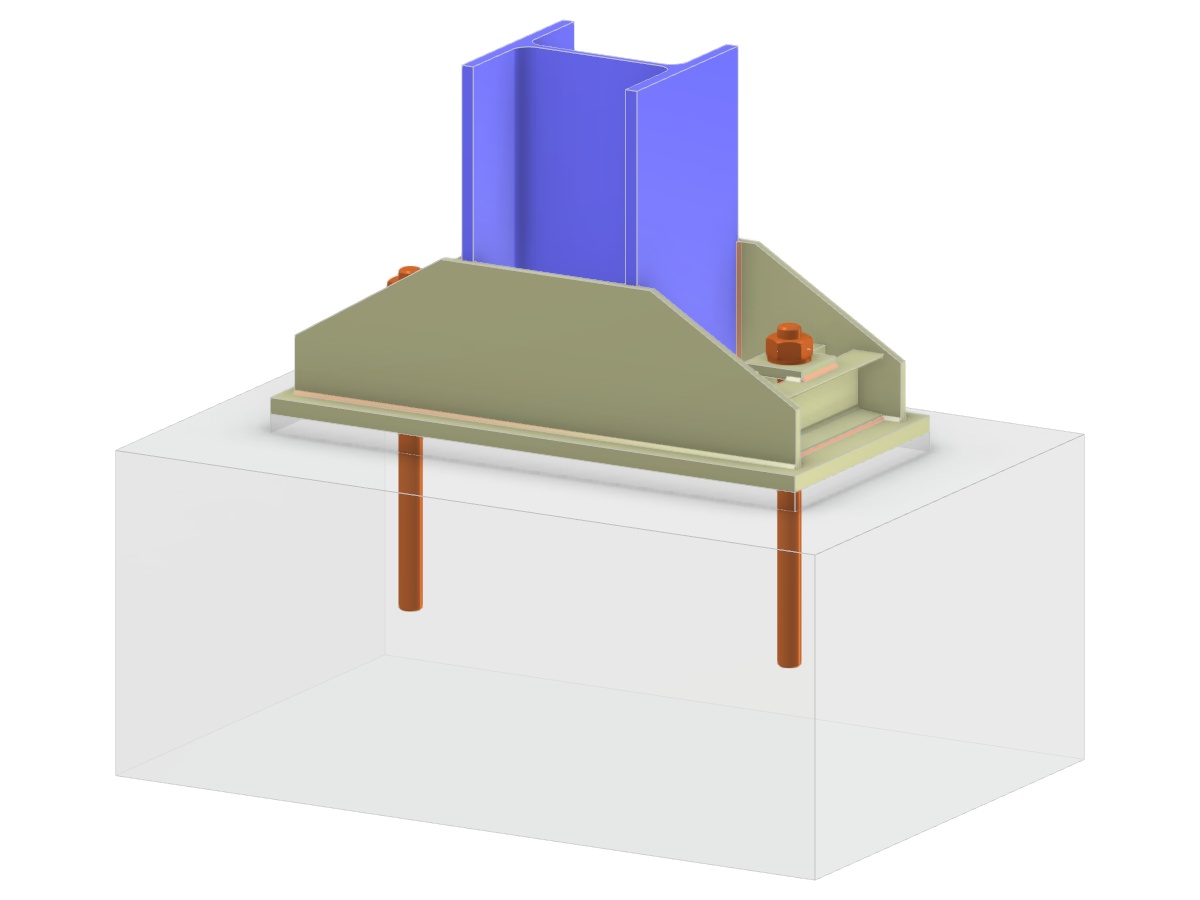

The image illustrates a detailed engineering model of a column base. It includes a base plate and stiffeners, which provide support and rigidity. Crossbars link to an I-section, enhancing the load distribution. Anchoring elements are visible, showcasing connections to the foundation.
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.117 tons |
| Dimensions (Metric) | 0.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
