Model 005653 | Column Base

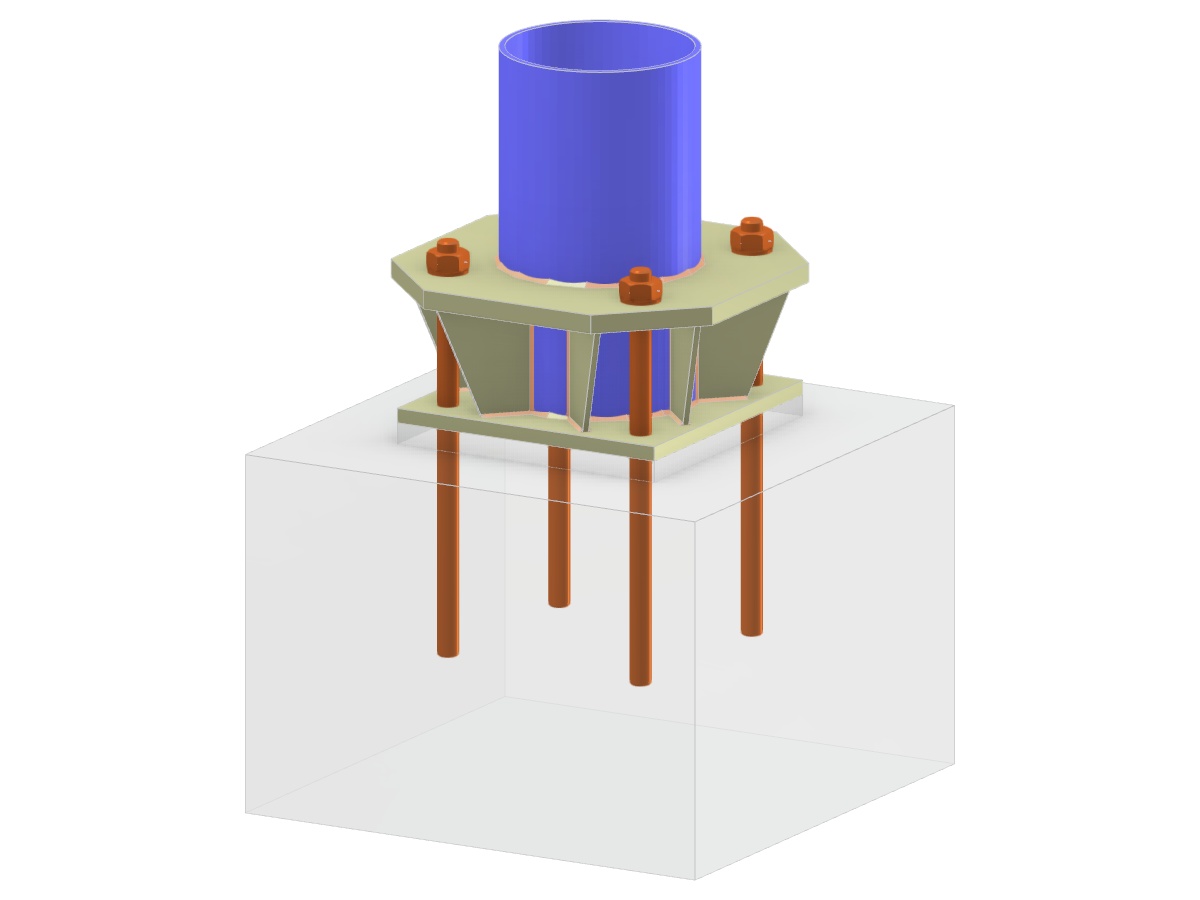

The image depicts a detailed model of a column base, including its base plate and additional structural components such as anchoring, an external ring, and ribs. The setup likely involves a circular hollow section (CHS) supported by these elements, highlighting their interaction and support capabilities. The precise alignment and connection of these elements are crucial for the stability and durability of the structure.
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.052 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
