Design Strip Wizard for Building Grid
Wizard for the design of strips in a building grid with variable width options based on span width and standards.

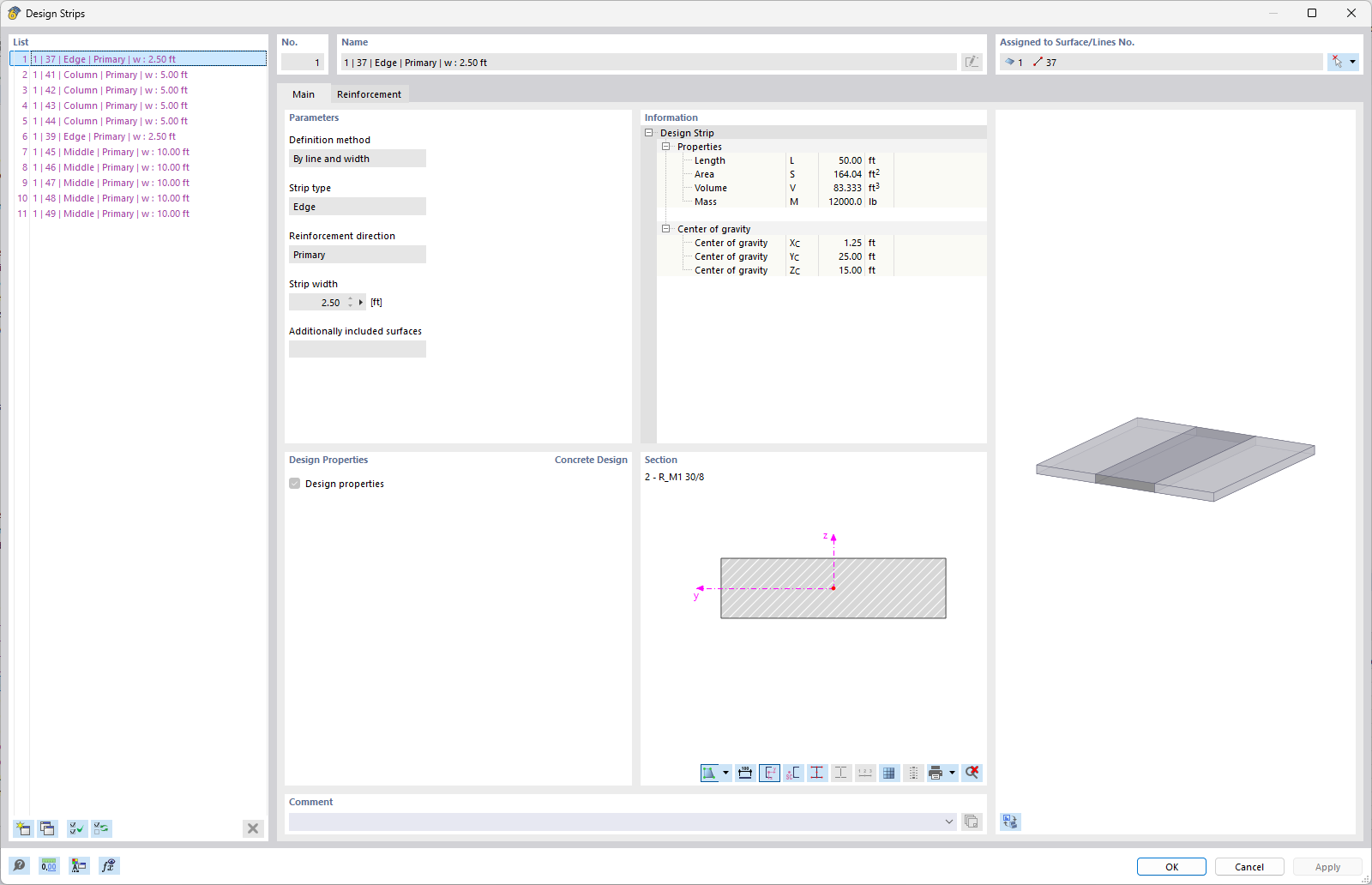

The Design Strip wizard allows for the efficient generation of design strips in a building grid. The width of these strips can be calculated automatically based on the span width and length, supported by standards, such as ACI 318-19. Alternatively, European span methods or user-defined widths can be used. The image shows the user interface of the wizard with input options for optimizing the design strips.
