Model 005655 | Column Base

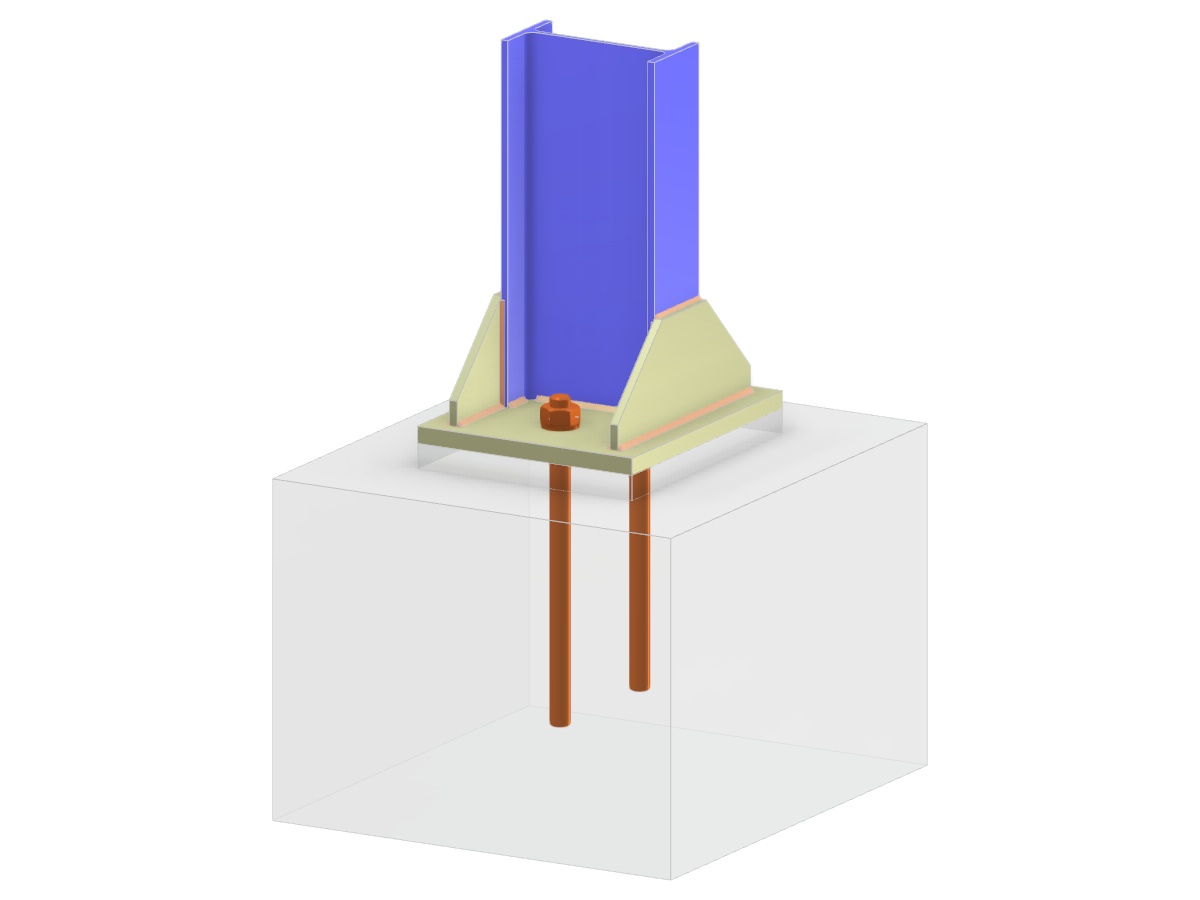

The image depicts a detailed structural element, specifically a column base. It features a base plate connected to an I-section column with attached stiffeners for enhanced stability. Anchoring components are visible, suggesting secure fixation to a foundation. The depiction focuses on typical elements used in structural base design.
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.022 tons |
| Dimensions (Metric) | 0,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 0 x 3.28 x 0 feet |
