Model 005664 | Column Base with Bolted Diagonal Connection

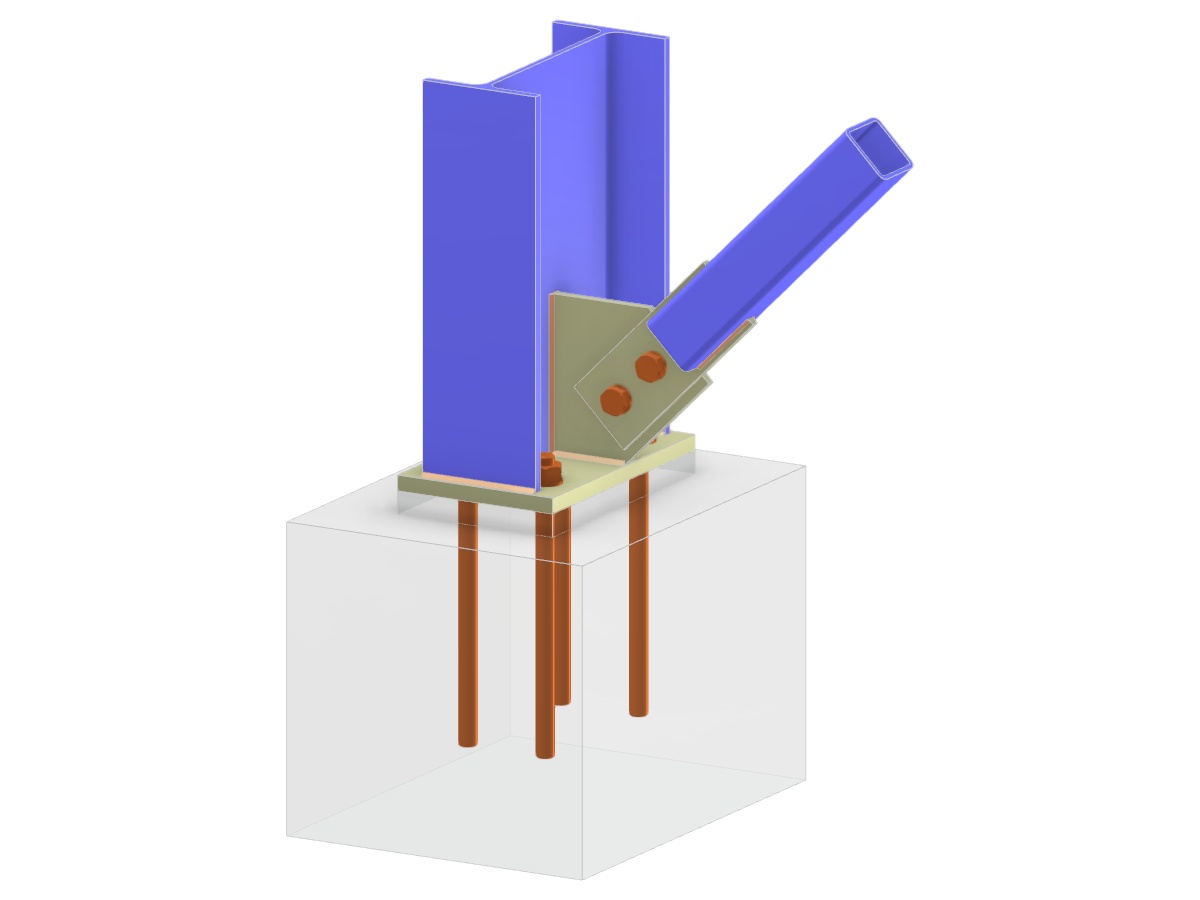

The image depicts a structural engineering model focused on a column base with bolted diagonal connections. It features an I-profile column connected with a rectangular hollow section (RHS) diagonal to the column web. Components include a base plate, a gusset plate, and a tongue connecting plate, all anchored securely. This setup is representative of a complex connection scenario in steel structure design.
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.065 tons |
| Dimensions (Metric) | 1,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
