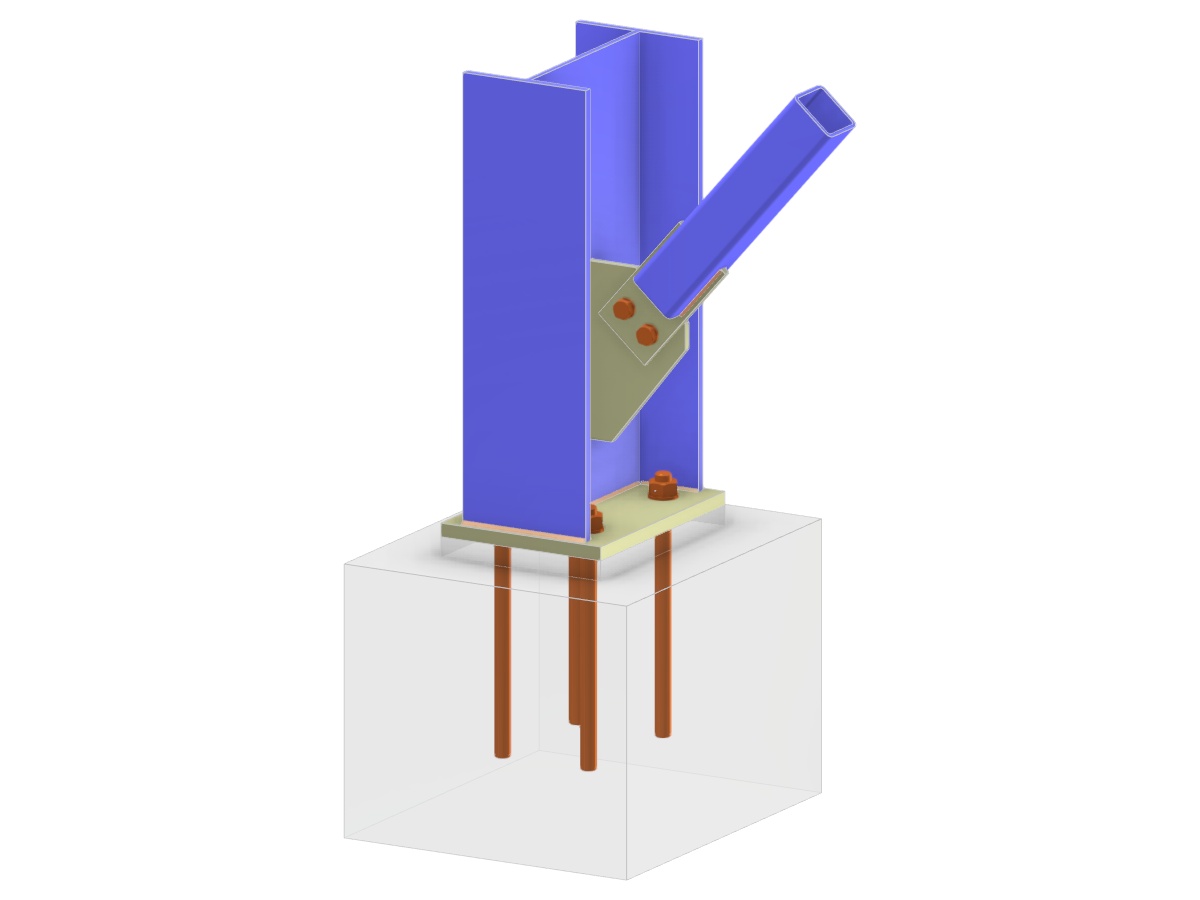

Model 005667 | Column Base with Gusset Plate and Bolted Diagonal Connection

Structural assembly showing column base with gusset plate, bolted diagonal RHS to column web, tongue connecting plate, base plate, and proper anchoring.
The image depicts a detailed structural model featuring a column base with a gusset plate and a bolted diagonal connection using an RHS member. The column is an I-profile connected to the base plate, and the structural configuration includes a tongue connecting plate. The proper anchoring at the base is also visible, emphasizing the assembly's load transfer mechanisms.
Used in
3D Model
More About 3D Model
Specifications
Number of Nodes 3
Number of Lines 2
Number of Members 2
Number of Surfaces 0
Number of Solids 0
Number of Load Cases 0
Number of Load Combinations 0
Number of Result Combinations 0
Total Weight 0.069 tons
Dimensions (Metric) 0,700 x 1,000 x 0,000 m
Dimensions (Imperial) 2.3 x 3.28 x 0 feet
