Model 005669 | Column Base with Gusset Plate and Bolted Diagonal Connection

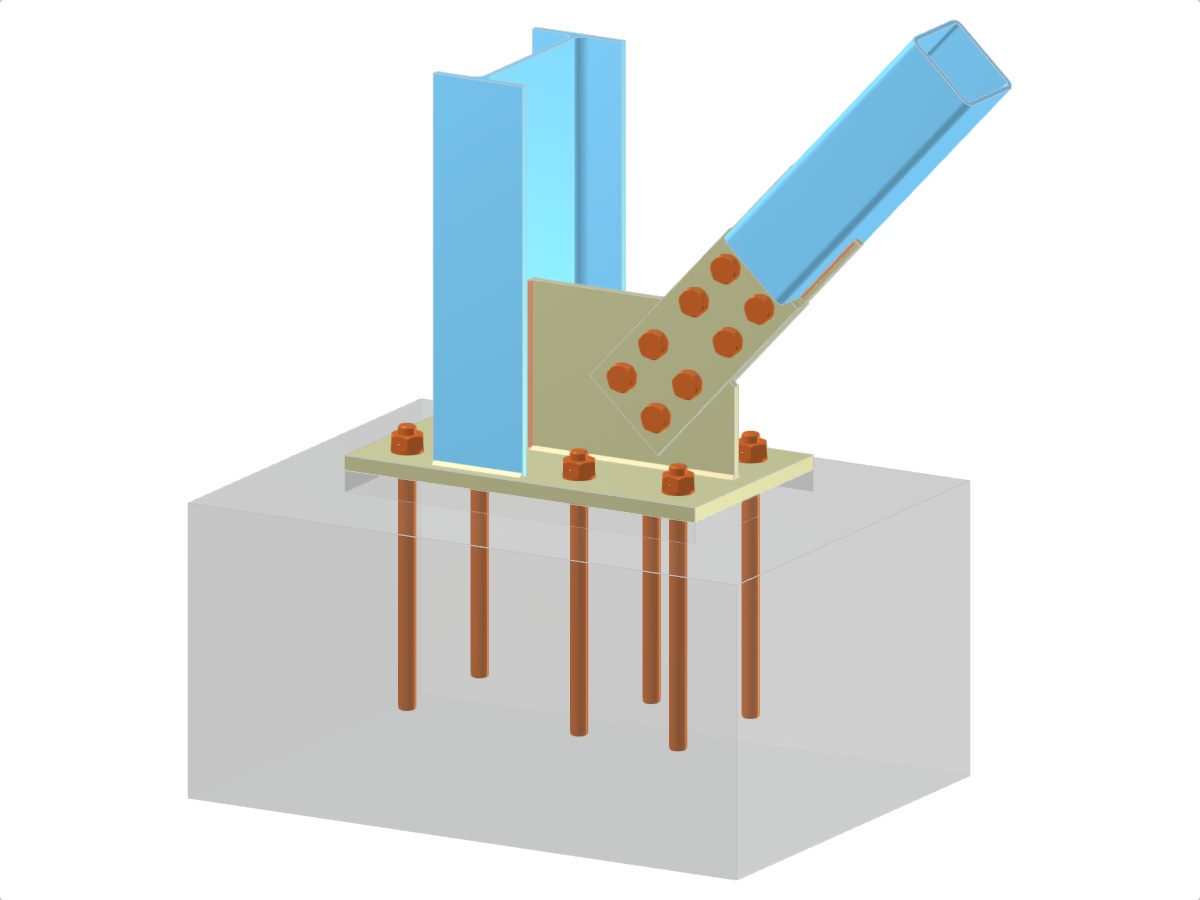

The image displays a structural model focusing on a column base with an I-profile column. It includes a diagonal RHS connected to the column web, showcasing a gusset plate and a bolted diagonal connection. The model also features a base plate, tongue connecting plate, cover plates, and anchoring elements. The connection design illustrated is fundamental for stability and load transfer in structural engineering applications.
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.064 tons |
| Dimensions (Metric) | 1,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
