Visualization of Single-Span Steel Beam

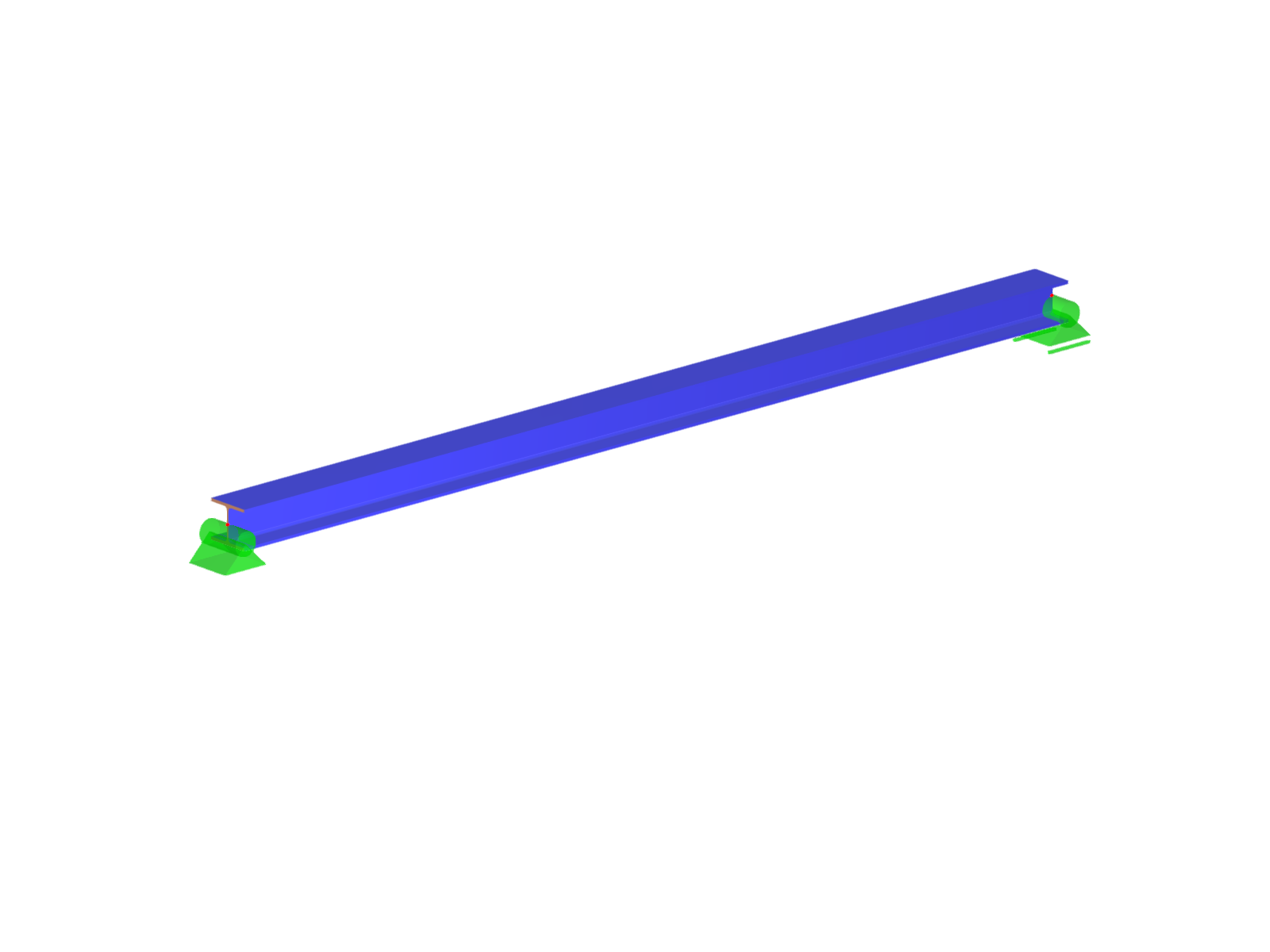

Static display of a single-span beam made of steel in realistic view.
The image shows a realistic representation of a single-span beam made of steel. The beam is displayed in a specific orientation that shows typical structural elements such as supports and trusses. This allows for a clear visual analysis of the supporting structure. Single-span beams are often found in structural design as basic elements.
Used in
3D Model
Specifications
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 0.342 t |
| Dimensions (Metric) | 5.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 16.4 x 0 x 0 feet |
