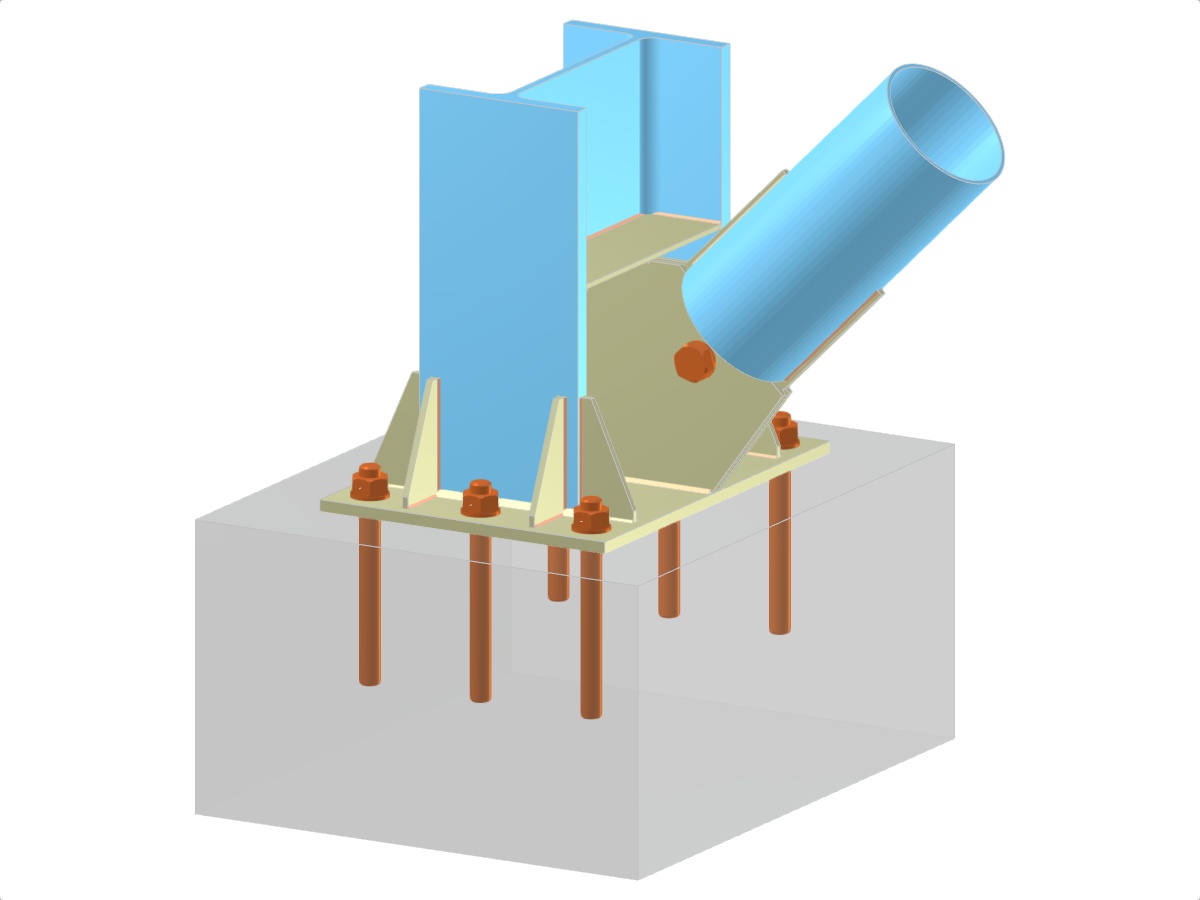

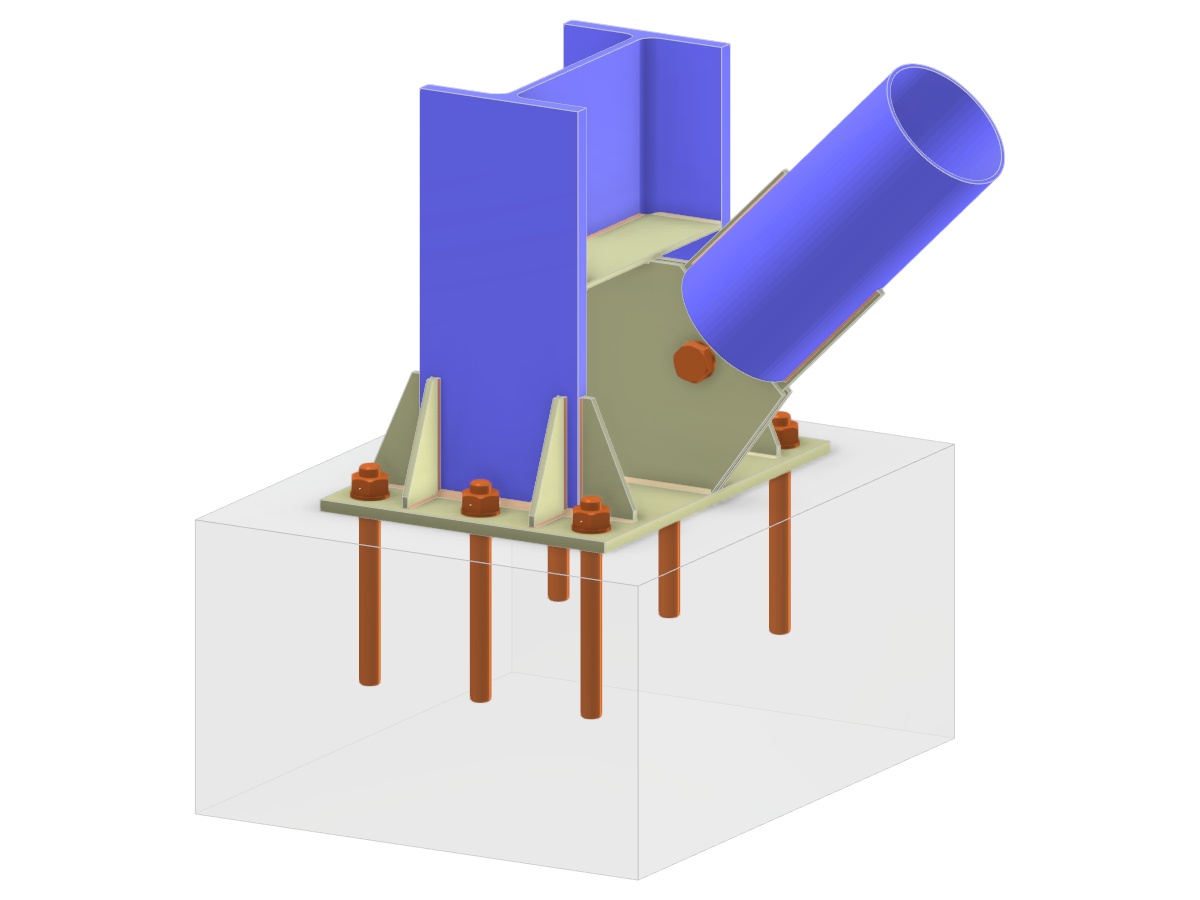

Model 005687 | Column Base with Gusset Plate and Bolted Diagonal Connection
3D Model
Specifications
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.479 tons |
| Dimensions (Metric) | 2.000 x 2.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 6.56 x 0 feet |
