Timber Structure in Competition

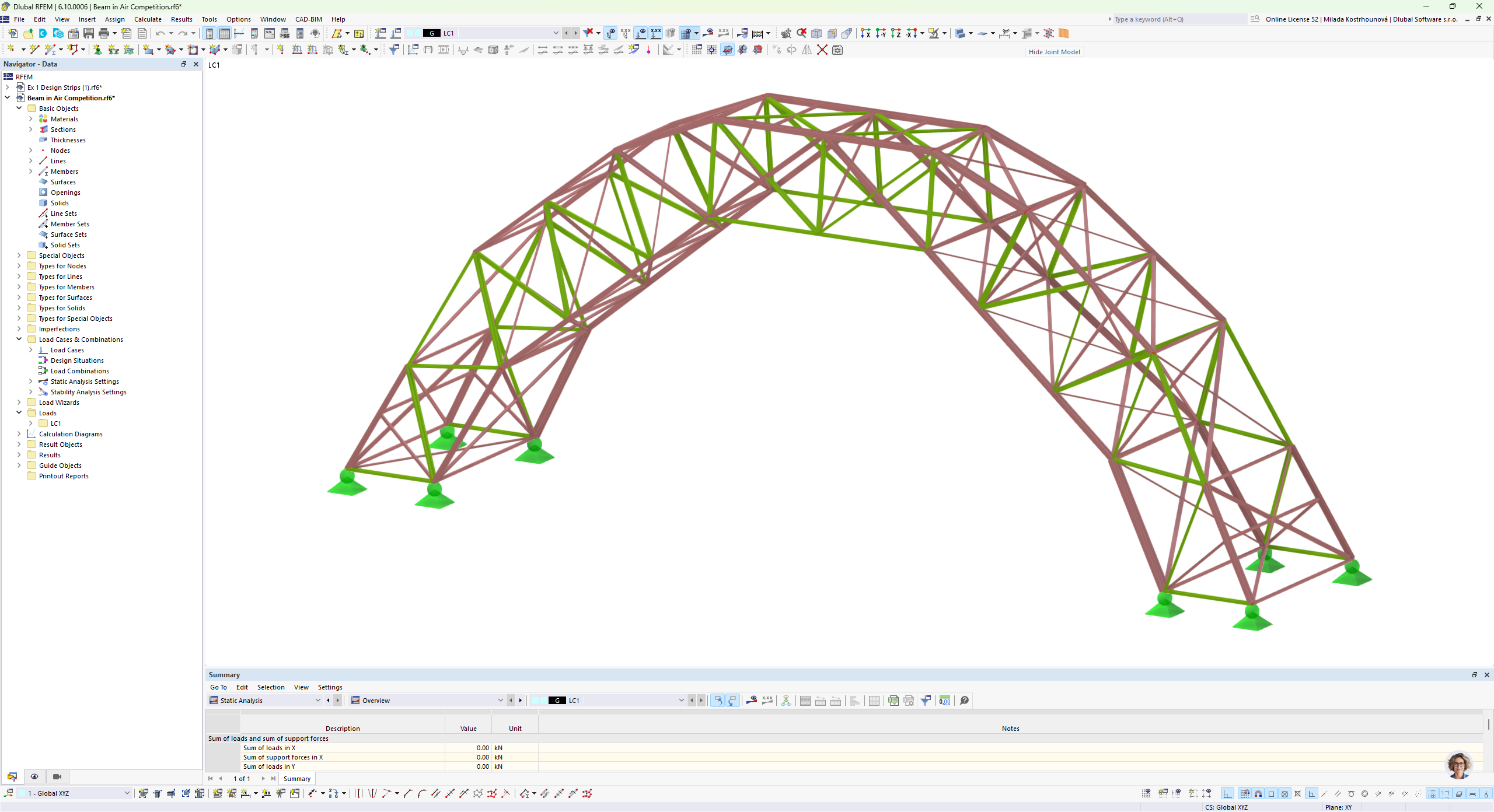

Model of a timber structure weighing just 1 kg and with a load-bearing capacity of 116 kg
The model of the timber structure for the “Dźwigar w dechę” competition was created in RFEM 5 and then transferred to RFEM 6. The project shows a detailed model weighing less than one kilogram that can transfer loads of up to 116 kilograms. The structure has complex assembly drawings on a scale of 1:1.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 100 |
| Number of Lines | 269 |
| Number of Members | 269 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0,001 t |
| Dimensions (Metric) | 2,072 x 0,801 x 0,399 m |
| Dimensions (Imperial) | 6.8 x 2.63 x 1.31 feet |
