Deformation of Timber Frame in RFEM

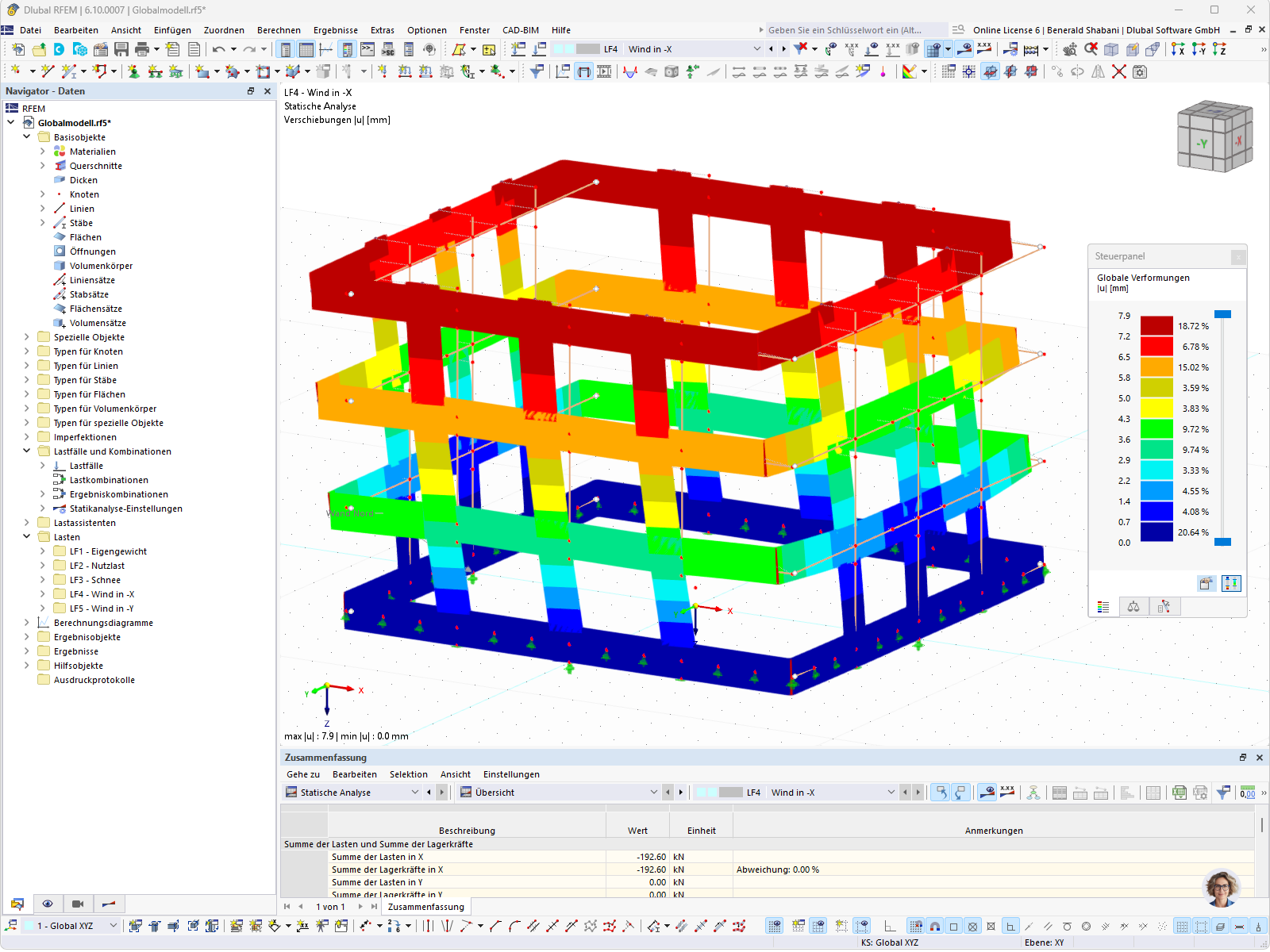

Visualization of the deformation of a timber frame model in CAD software.
The image shows the deformation of a timber frame modeled in structural analysis software. The deformation is highlighted by a graphical display. This analysis is typical for checking the structural integrity and safety of timber frames. The timber frame is tested under various load conditions to ensure its stability. Photo by © Ingenieurbüro Wirth Haker
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 170 |
| Number of Lines | 204 |
| Number of Members | 204 |
| Number of Load Cases | 5 |
| Number of Result Combinations | 5 |
| Total Weight | 19.832 t |
| Dimensions (Metric) | 13.895 x 13.595 x 9.948 m |
| Dimensions (Imperial) | 45.59 x 44.6 x 32.64 feet |
| Program Version | 5.15.01 |
