Parametric Membrane Toll Station Design with Arch Trusses
Parametric toll station in Xi'an, featuring a membrane structure supported on arched trusses, part of an expressway project.

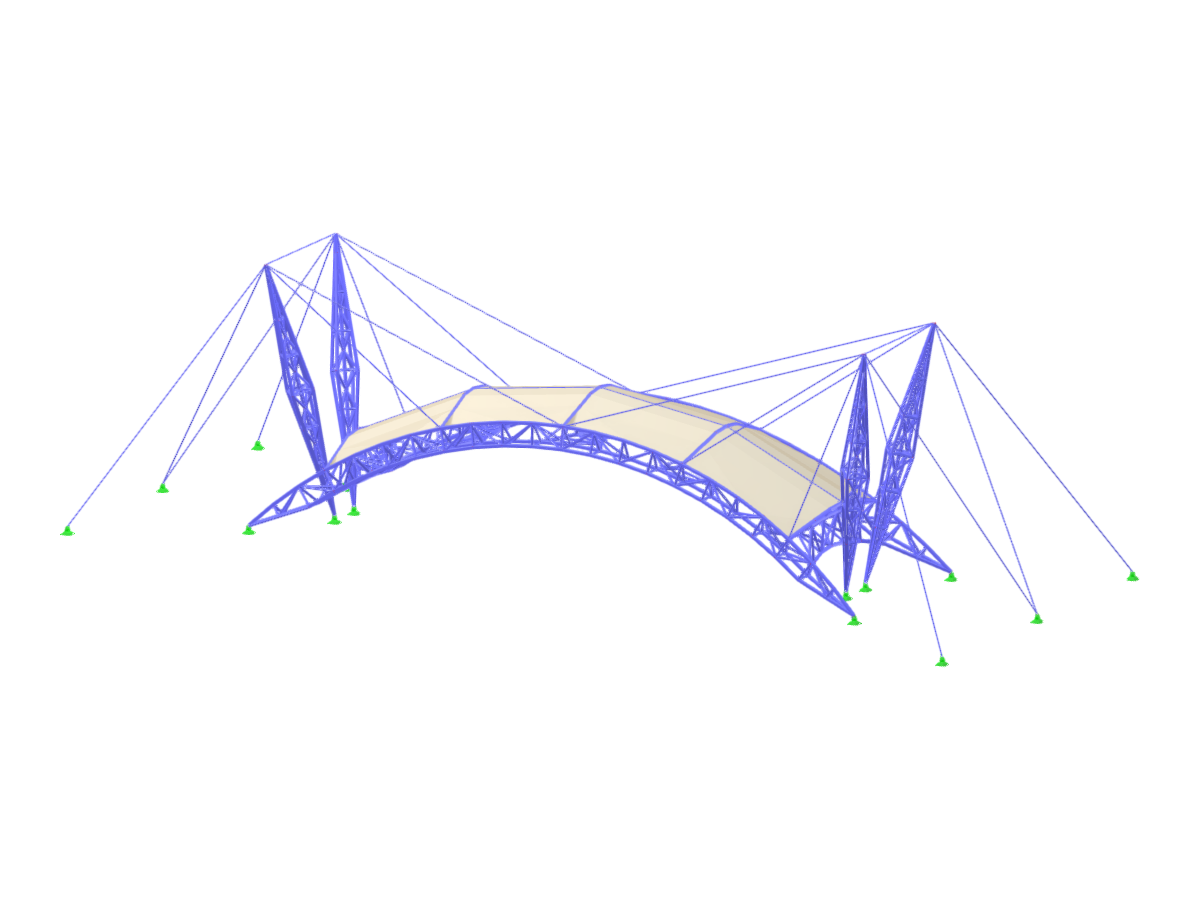

The image showcases the Xi'an-Xixian North Ring Expressway Dawang Ramp Toll Station featuring a parametric design. The toll station incorporates a membrane structure that is supported by arched trusses. This innovative architectural design enhances both functionality and aesthetics, combining engineering precision with modern construction techniques.
3D Model
Specifications
| Block parameters editable dynamically | |
| Number of Nodes | 408 |
| Number of Lines | 1285 |
| Number of Members | 1269 |
| Number of Surfaces | 24 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 305.967 tons |
| Dimensions (Metric) | 130.000 x 34.000 x 49.000 m |
| Dimensions (Imperial) | 426.51 x 111.55 x 160.76 feet |
