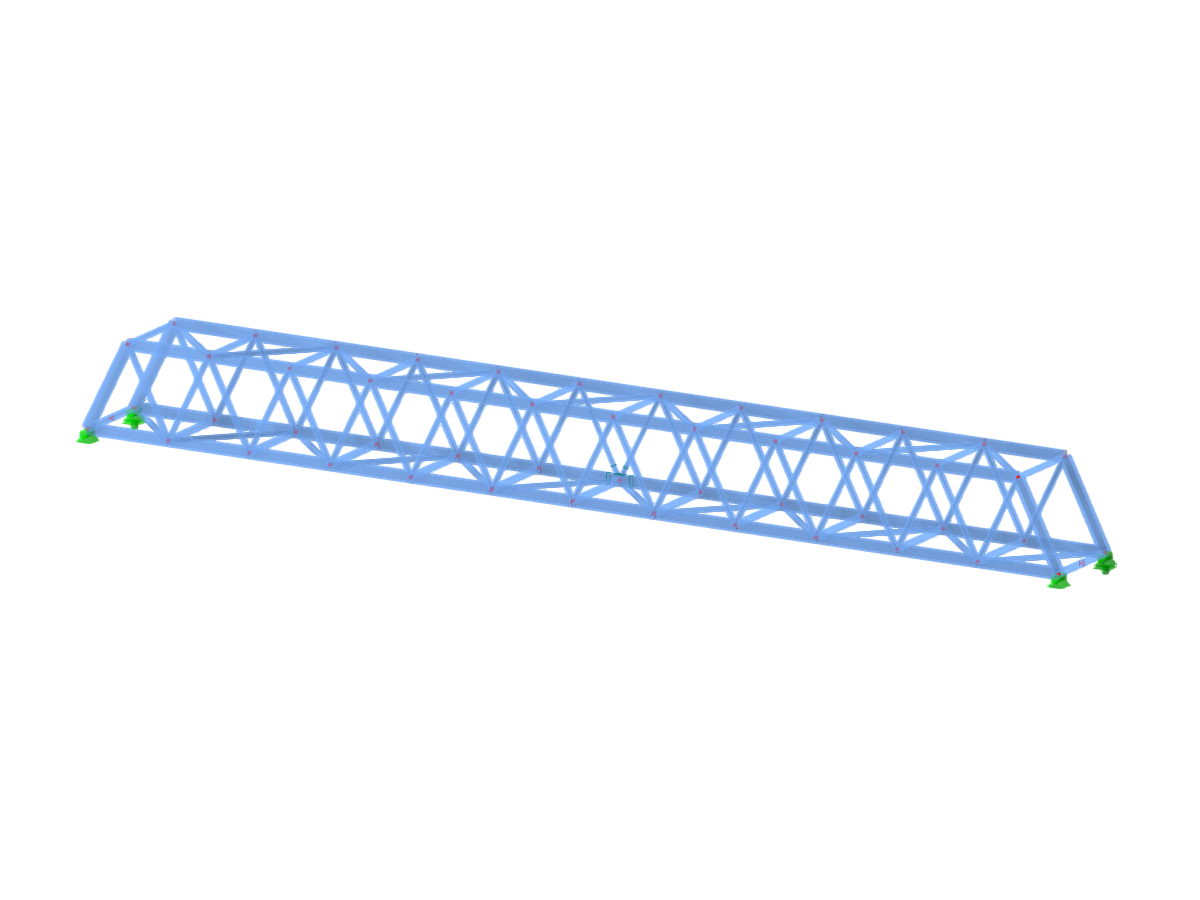

Steel Footbridge with Designed Connection
Steel footbridge with designed connection
Used in
3D Model
Specifications
| Number of Nodes | 52 |
| Number of Lines | 144 |
| Number of Members | 144 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 220 |
| Number of Result Combinations | 0 |
| Total Weight | 41,000 t |
| Dimensions (Metric) | 42,000 x 3,500 x 3,500 m |
| Dimensions (Imperial) | 137.8 x 11.48 x 11.48 feet |
