Deformation Analysis of Timber Gridshell in RFEM
Analysis of the timber gridshell structures regarding the deformation under loading.

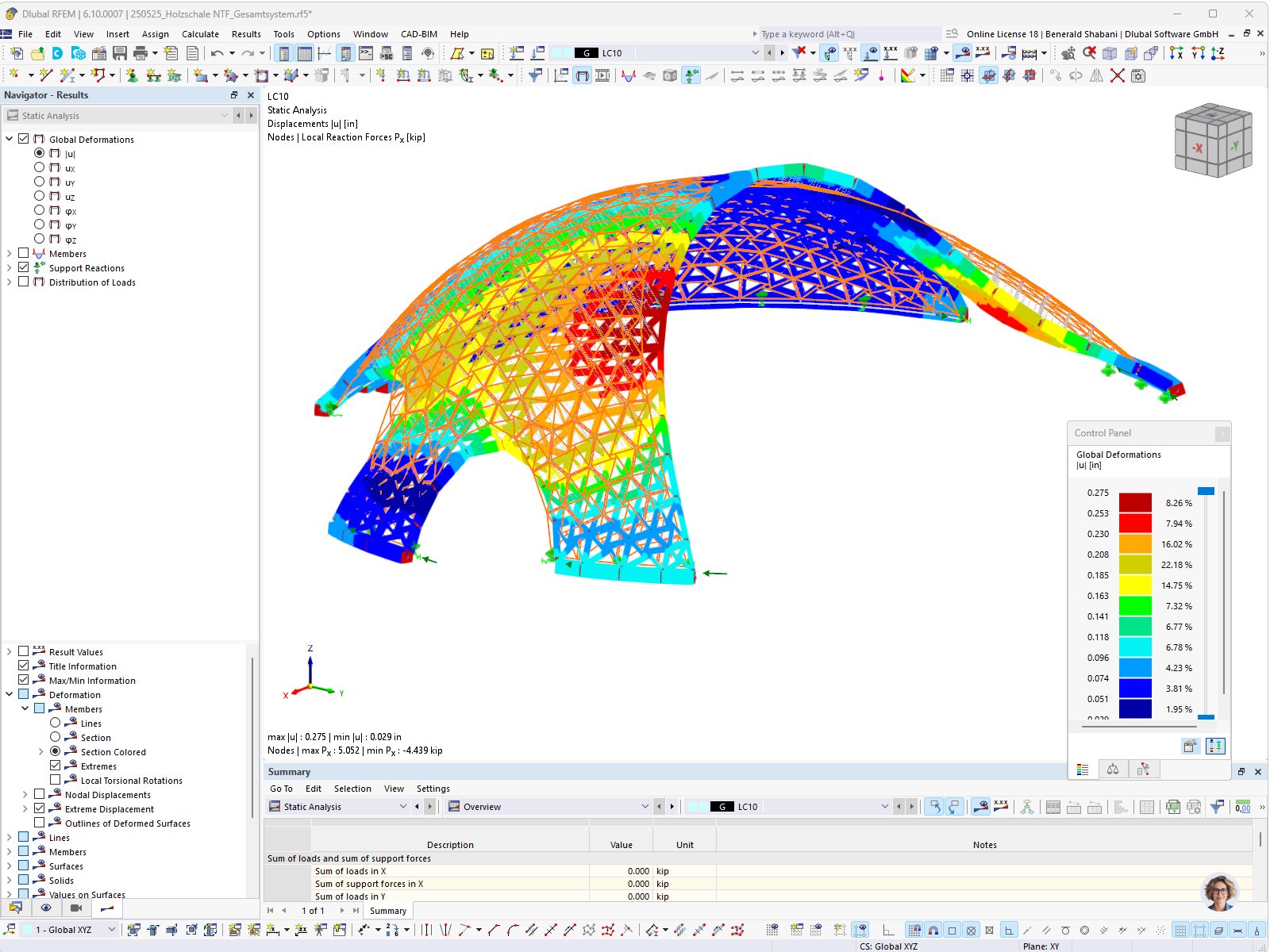

The image shows the deformation analysis of a timber gridshell, which is a complex structure designed to bear loads and distribute them evenly. The image illustrates how the structure deforms under different loads, providing important insights into its stability. Photo by Ausburg University of Applied Sciences.
3D Model
Specifications
| Number of Nodes | 4590 |
| Number of Lines | 4168 |
| Number of Members | 4168 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 113 |
| Number of Result Combinations | 5 |
| Total Weight | 143.323 tons |
| Dimensions (Metric) | 44.637 x 32.258 x 12.942 m |
| Dimensions (Imperial) | 146.45 x 105.83 x 42.46 feet |
| Program Version | 5.26.02 |
