Arched Hall

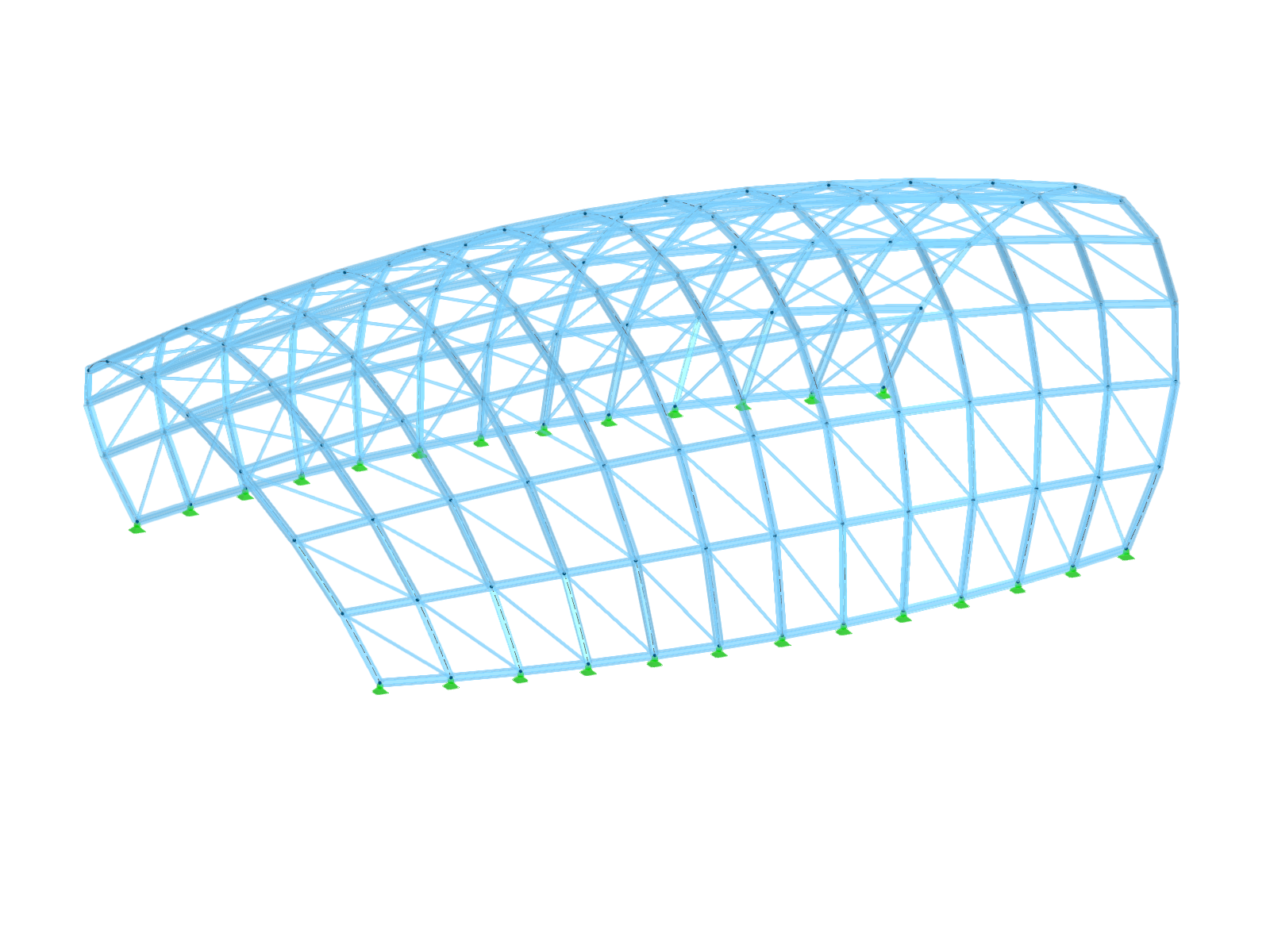

Metal structure with arched roof and clear roof covering.
A steel arched hall with a slightly transparent roof covering showcases its functional and aesthetic structure. The steel arches form the supporting scaffolding and ensure a large span without intermediate supports. This construction method is often used in industrial structures or for warehouses. The structure provides flexibility and durability.
Used in
3D Model
Specifications
| Number of Nodes | 143 |
| Number of Lines | 395 |
| Number of Members | 382 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 2 |
| Total Weight | 0.002 t |
| Dimensions (Metric) | 21.000 x 6.200 x 12.400 m |
| Dimensions (Imperial) | 68.9 x 20.34 x 40.68 feet |
