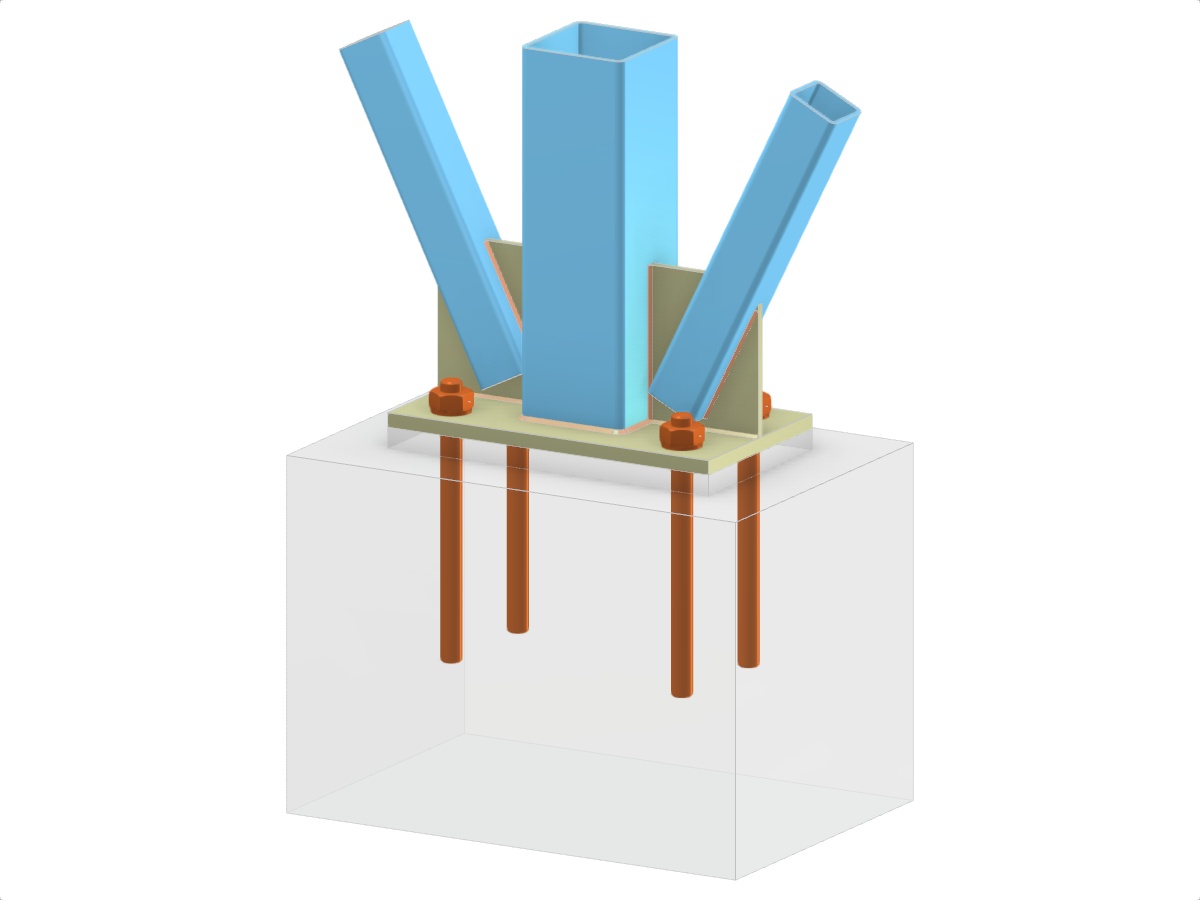

Model 005803 | Column Base and Two Diagonals of Vertical Bracing
This image depicts a detailed structural steel connection for a column base involving a rectangular hollow section (RHS) column. Two RHS diagonals are attached using a through-going gusset plate. The setup includes a base plate and features welded connections for the diagonals. Anchoring components are visible as part of the overall design.
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.054 tons |
| Dimensions (Metric) | 1.200 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 3.94 x 3.28 x 0 feet |
