Model 005805 | Column Base and Two Diagonals of Vertical Bracing

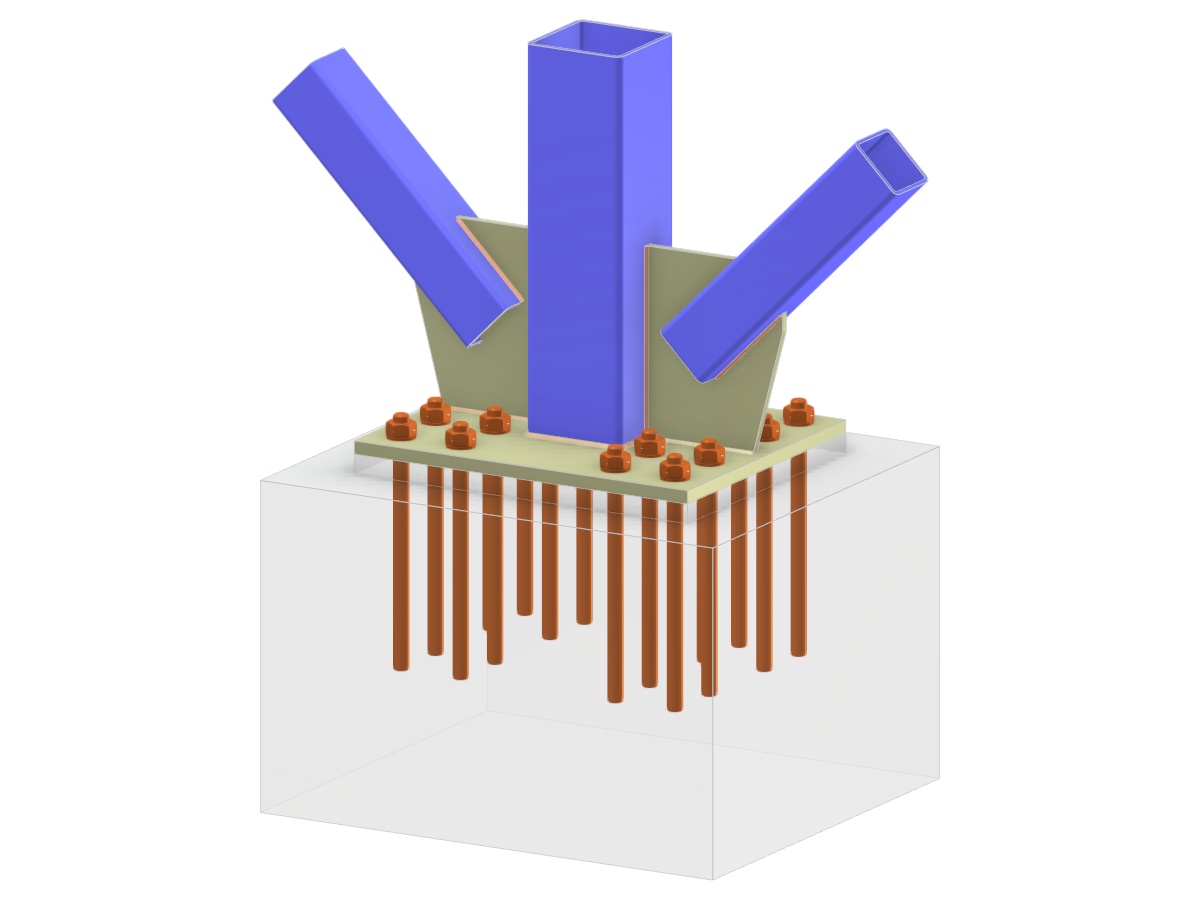

The image shows a steel column base connection with a rectangular hollow section (RHS) column and two RHS diagonals. A base plate supports the structure, accompanied by a through-going gusset plate for added stability. The diagonals are connected using welded connections, ensuring a secure junction. Anchoring is visible, demonstrating the structural integration with the foundation.
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.069 tons |
| Dimensions (Metric) | 2,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
