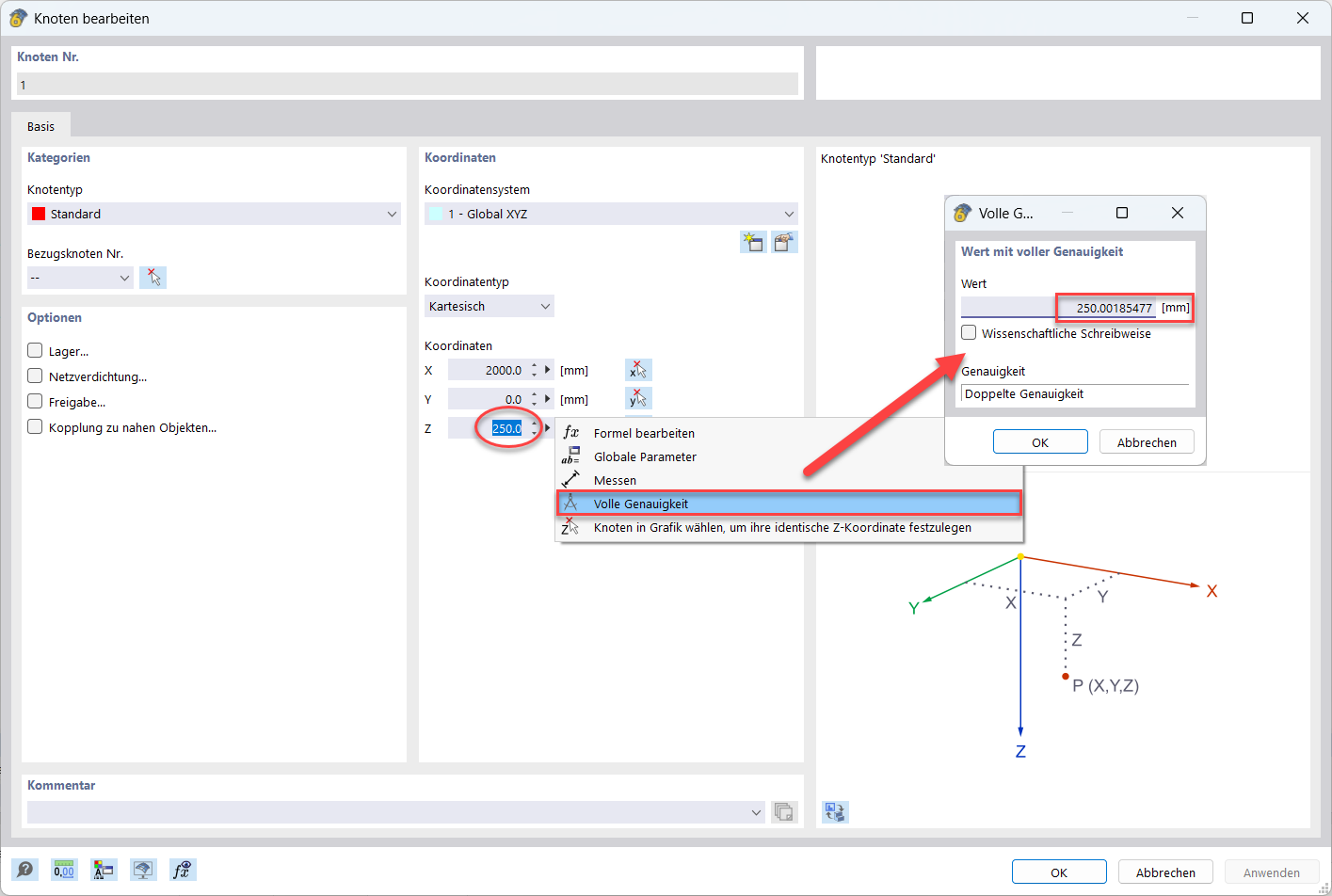

The Node Coordinates dialog box shows precise orientation and position for members in a structure.
The Node Coordinates dialog box shows precise orientation and position for members in a structure.
2025-06-23
057464

FAQ 5697 | Checking Node Coordinates

The Node Coordinates dialog box shows precise orientation and position for members in a structure.
The dialog box shows the coordinates of a specific node in full numerical accuracy. This is crucial to ensure that multiple beams or members have the exact same spatial orientation. A technical display allows for the exact alignment of node positions and prevents misunderstandings.
