Model 005809 | Column Base with Two Diagonals of Vertical Bracing

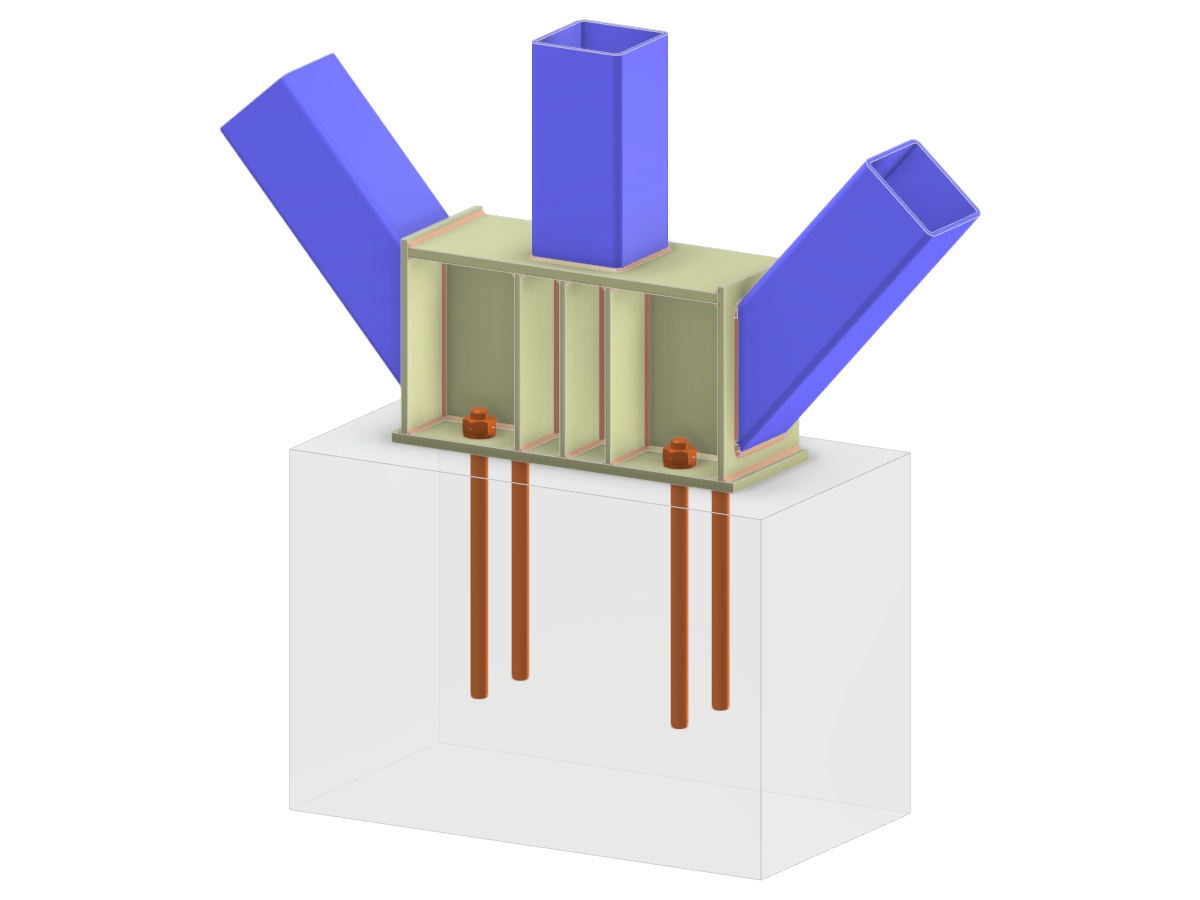

The image shows a detailed view of a steel column base connection. It includes a rectangular hollow section (RHS) column with two RHS diagonal members. The connection is supported by a base plate with an inserted T-member and stiffeners for additional stability. The diagonals are welded to the main column, and the entire assembly is anchored securely.
3D Model
Specifications
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.090 tons |
| Dimensions (Metric) | 2.000 x 1.000 x 0.000 m |
| Dimensions (Imperial) | 6.56 x 3.28 x 0 feet |
