Deformation Analysis of Steel Facade Support in RFEM 6

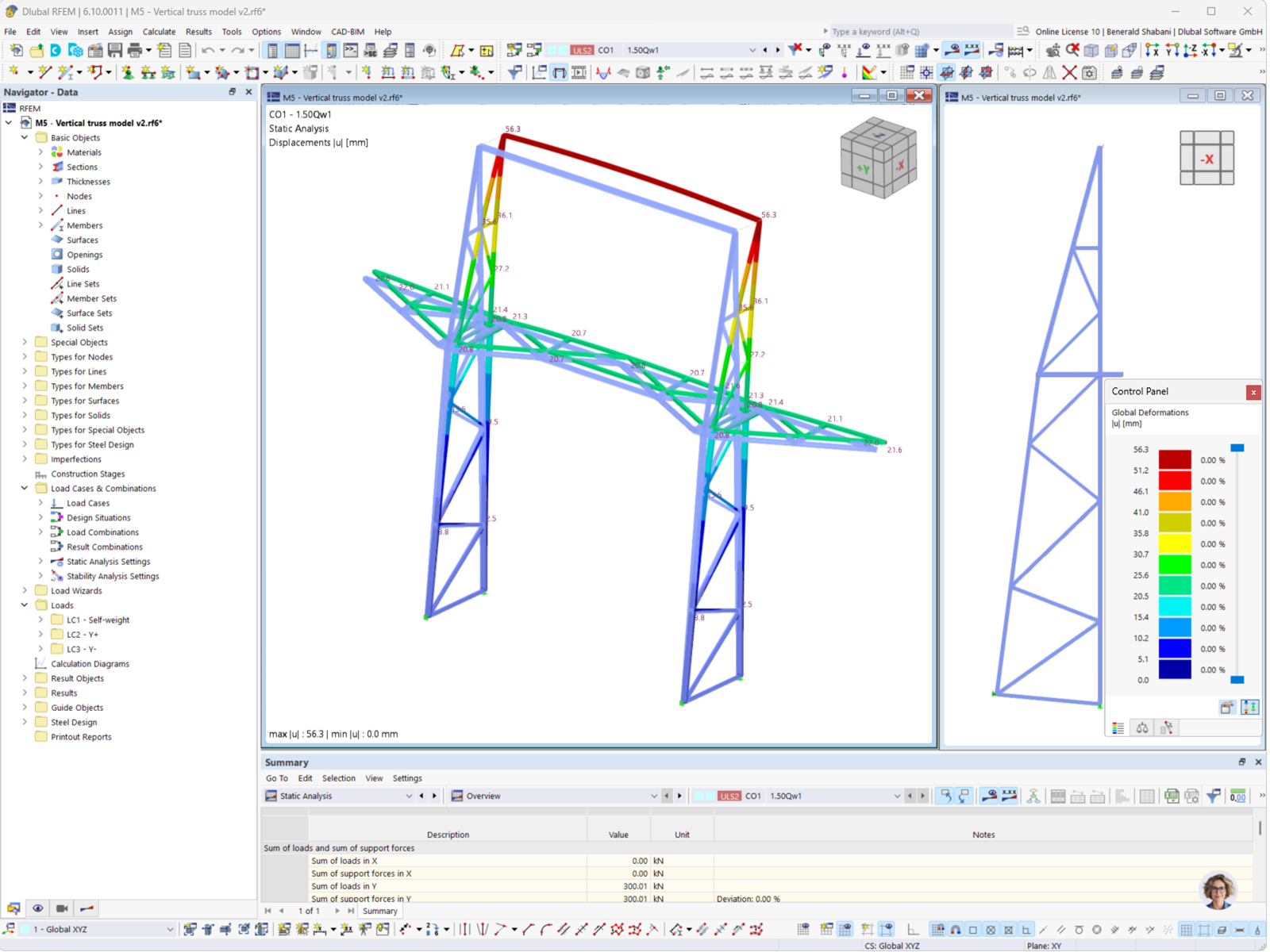

Display of the deformation of a facade support made of steel structure with RFEM 6.
The deformation of a facade support made of steel structure is displayed in RFEM 6. This analysis visualizes how the structure reacts under different load conditions. The graphical display provides engineers with important information on the stability and optimization of facade elements in structural projects. The detailed analysis supports the refinement and adaptation of steel components for improved performance and safety. Photo by © UAB Intelligent BIM Solutions.
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 47 |
| Number of Lines | 63 |
| Number of Members | 63 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 6.809 tons |
| Dimensions (Metric) | 26.000 x 20.230 x 4.497 m |
| Dimensions (Imperial) | 85.3 x 66.37 x 14.75 feet |
