Primary Moments My of Prestressed Concrete Beam Due to Prestress Forces of Tendon

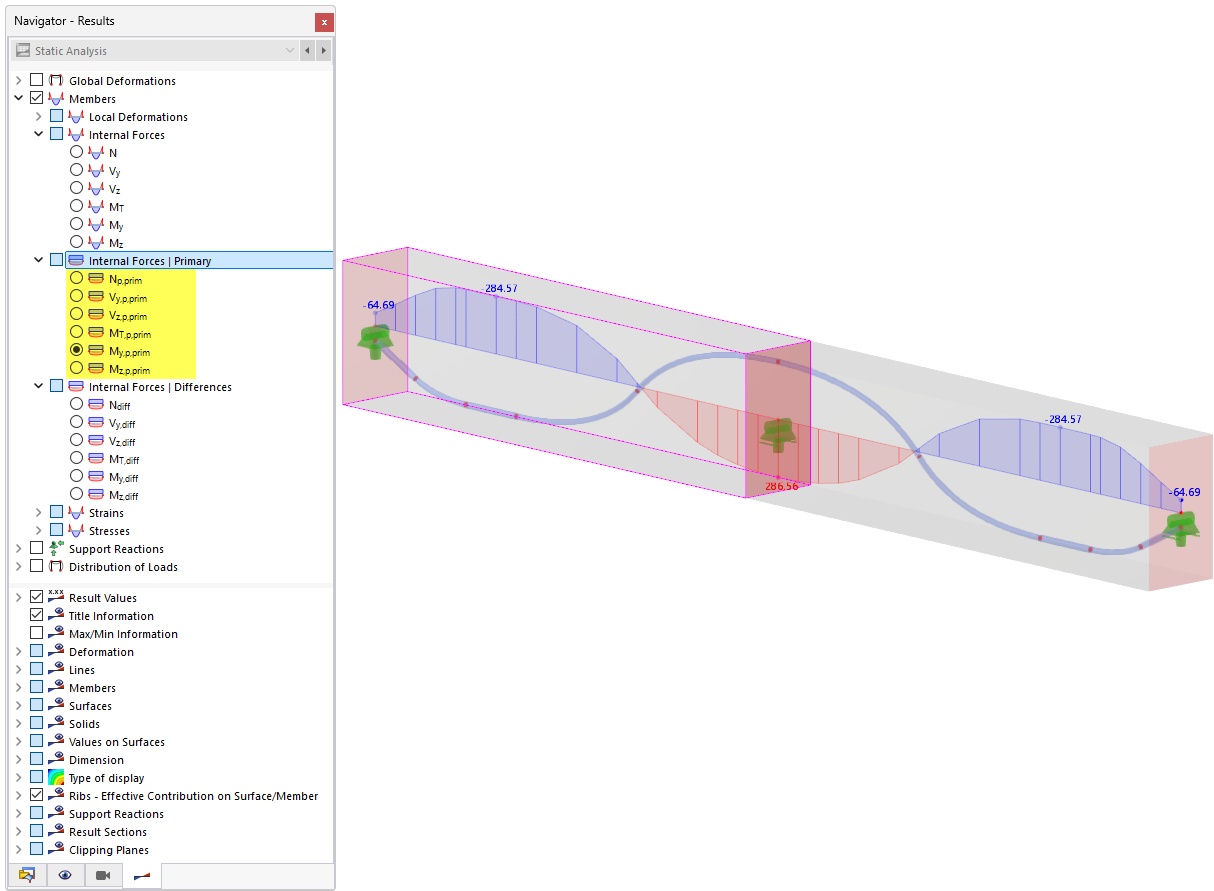

Primary moments My of a prestressed concrete beam due to prestressing forces of the tendon
The image shows the primary internal forces and moments My of a prestressed concrete beam caused by the prestressing forces of a tendon. Such displays illustrate the stress on the beam when prestressing forces are applied and are crucial for structural analysis and design in concrete construction projects.
