Result Diagrams for Bending Moments, Primary Moments, and Differences

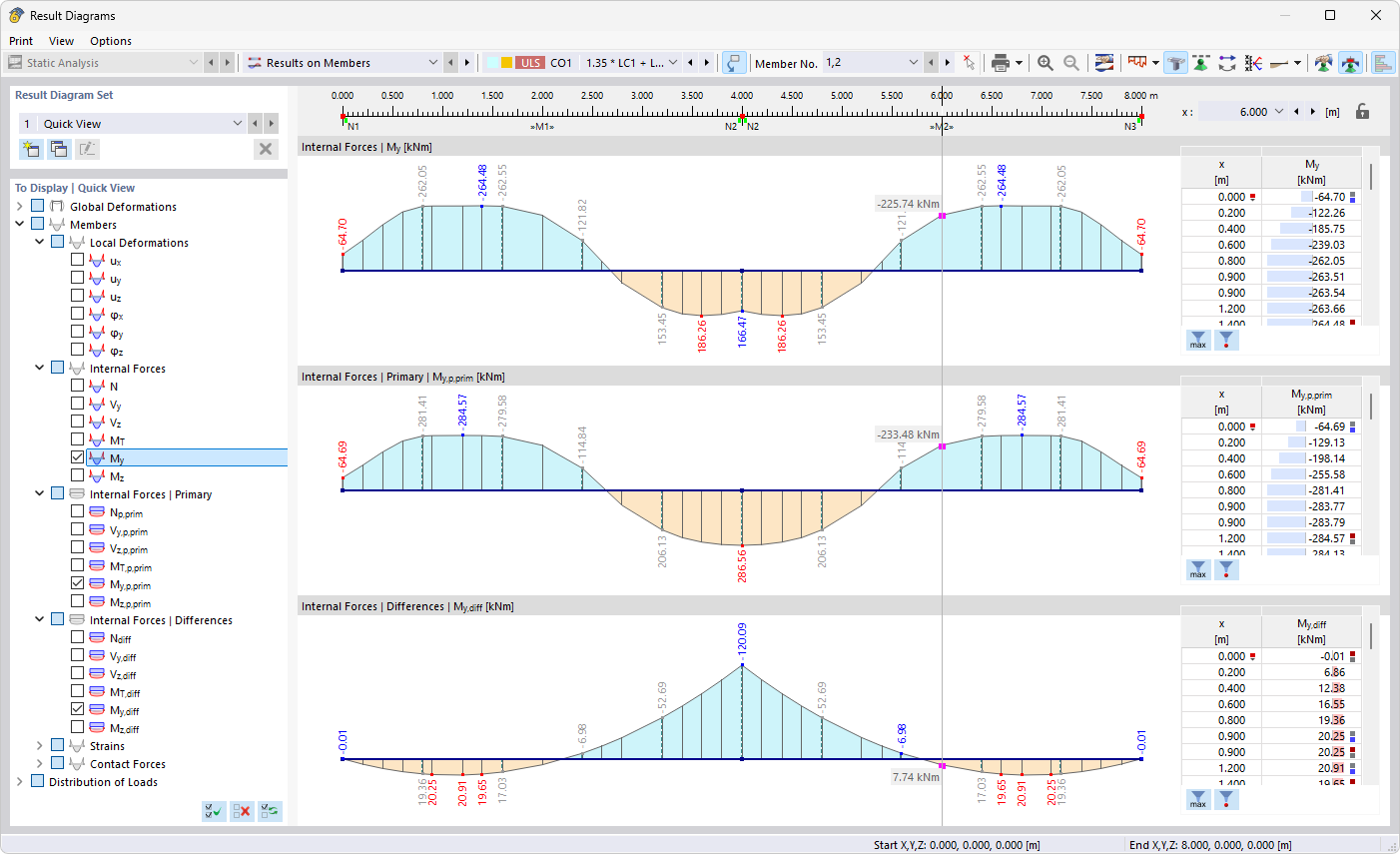

Result diagrams for bending moments, primary moments and difference
The image shows a dialog box for analyzing internal forces and their differences in a prestressed concrete beam with tendons. It compares primary internal forces and differentiated values. The display allows for a detailed check of the beam's load-bearing capacity reserves.
