Chained Calculation Diagram Monitor for Loading and Unloading for Nonlinear Material Properties

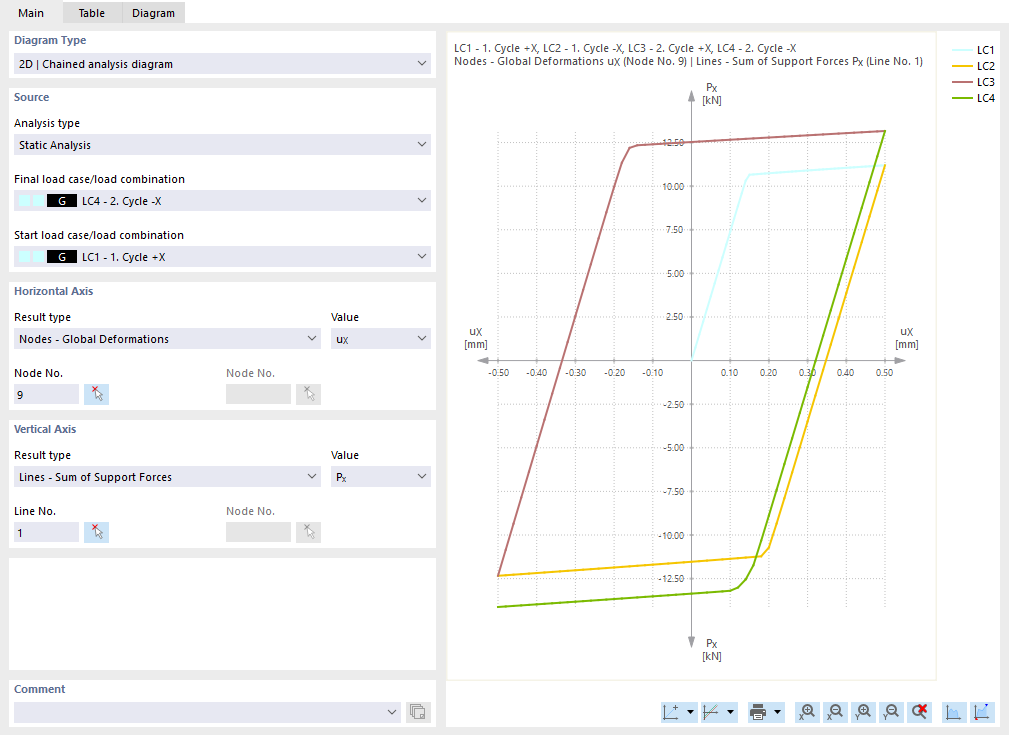

Diagram shows hysteresis for material behavior when subjected to a load and unload using load cases
The diagram illustrates the hysteresis caused by the nonlinear material behavior under loading and unloading. Several consecutive load cases clearly show the reaction of the material. This type of analysis is crucial for understanding the behavior of structures under changing load conditions.
