Automatic Bar Diameter Determination for Reinforcement

Illustration showcasing automatic calculation of bar diameters for reinforced concrete beams based on defined bar count, displaying diameters of 12 and 18.

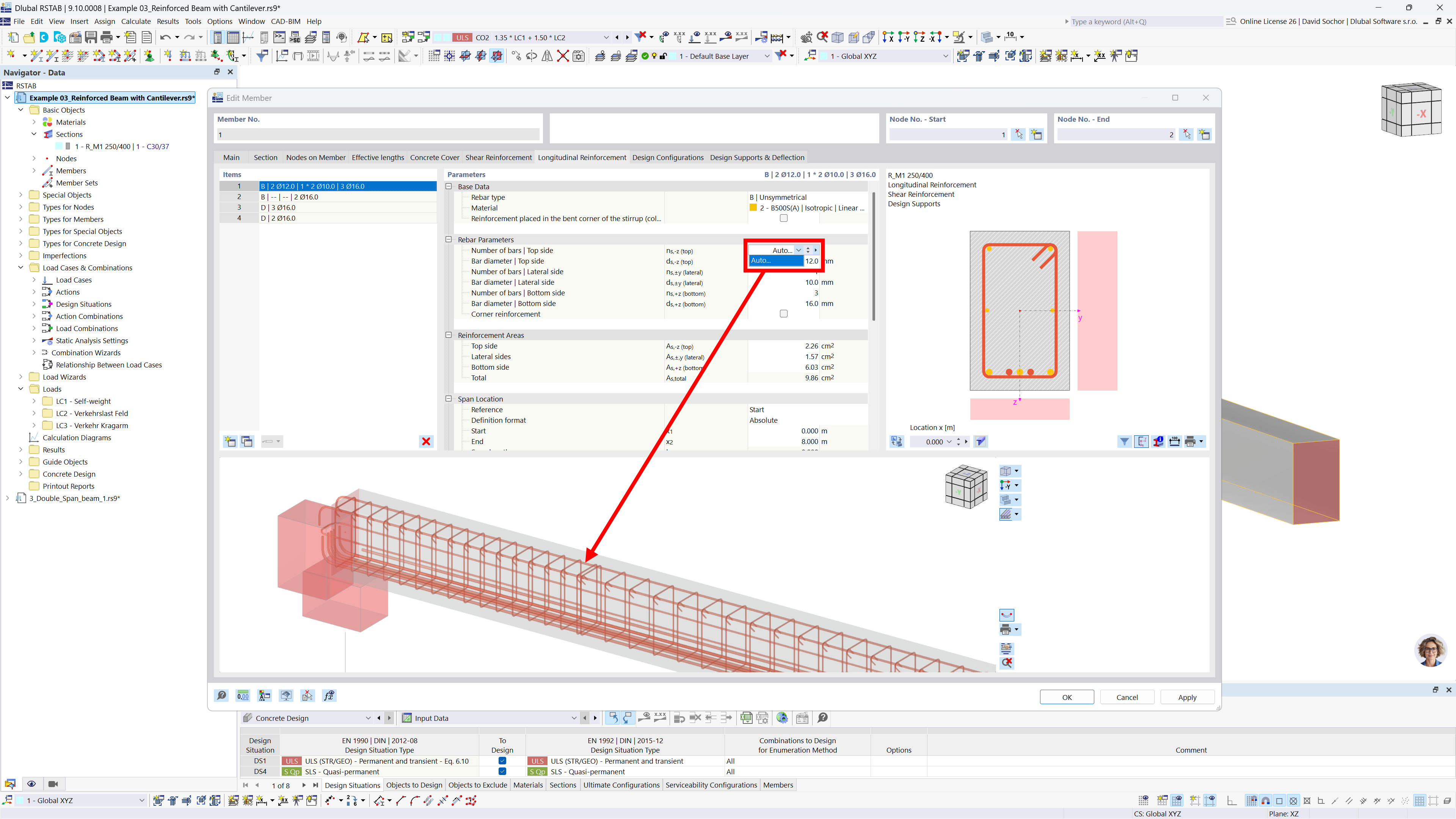

The image represents the automatic function for determining bar diameters in reinforced concrete beams using Dlubal software. The process involves entering the number of bars, after which the software calculates the bar diameters. In this instance, diameters 12 and 18 were automatically determined for the top and bottom bars, respectively. The functionality allows users to set minimum and maximum diameter constraints, demonstrating the software's versatility in structural design.
