Deformation of Membrane Roofing in RFEM
Deformation display of a membrane roof in simulation software for engineering structures.

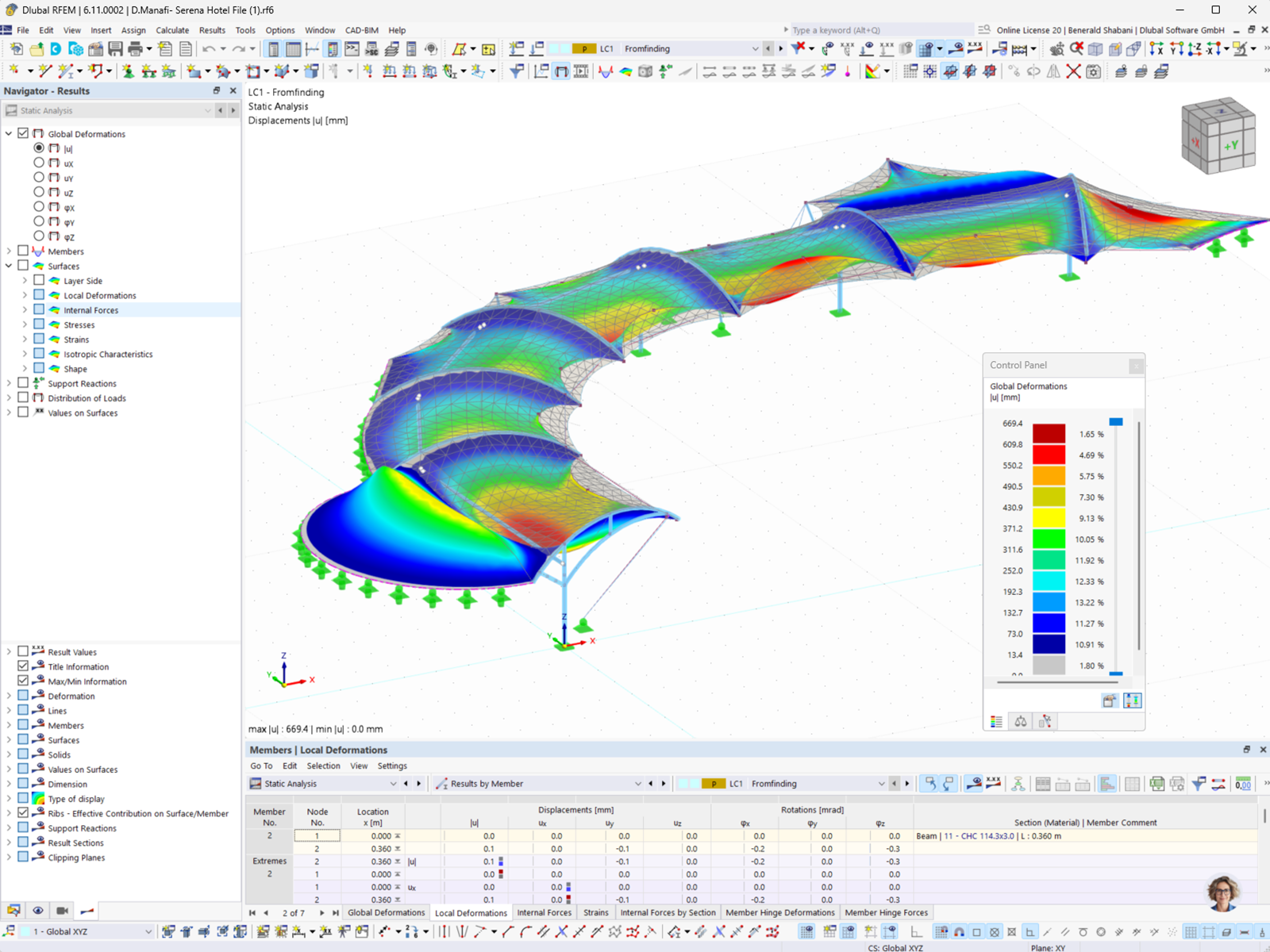

The image shows a simulation of the deformation of a membrane roof under certain load conditions in RFEM 6 software. The display shows the effects of various forces on the geometric shape and deformation of the membrane material. This visualized analysis supports engineers in optimizing lightweight structures. © Savana General Trading Company
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 113 |
| Number of Lines | 172 |
| Number of Members | 149 |
| Number of Surfaces | 21 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 1.966 t |
| Dimensions (Metric) | 39.584 x 4.070 x 31.240 m |
| Dimensions (Imperial) | 129.87 x 13.35 x 102.49 feet |
