Wind Analysis of Membrane Roofing in RWIND

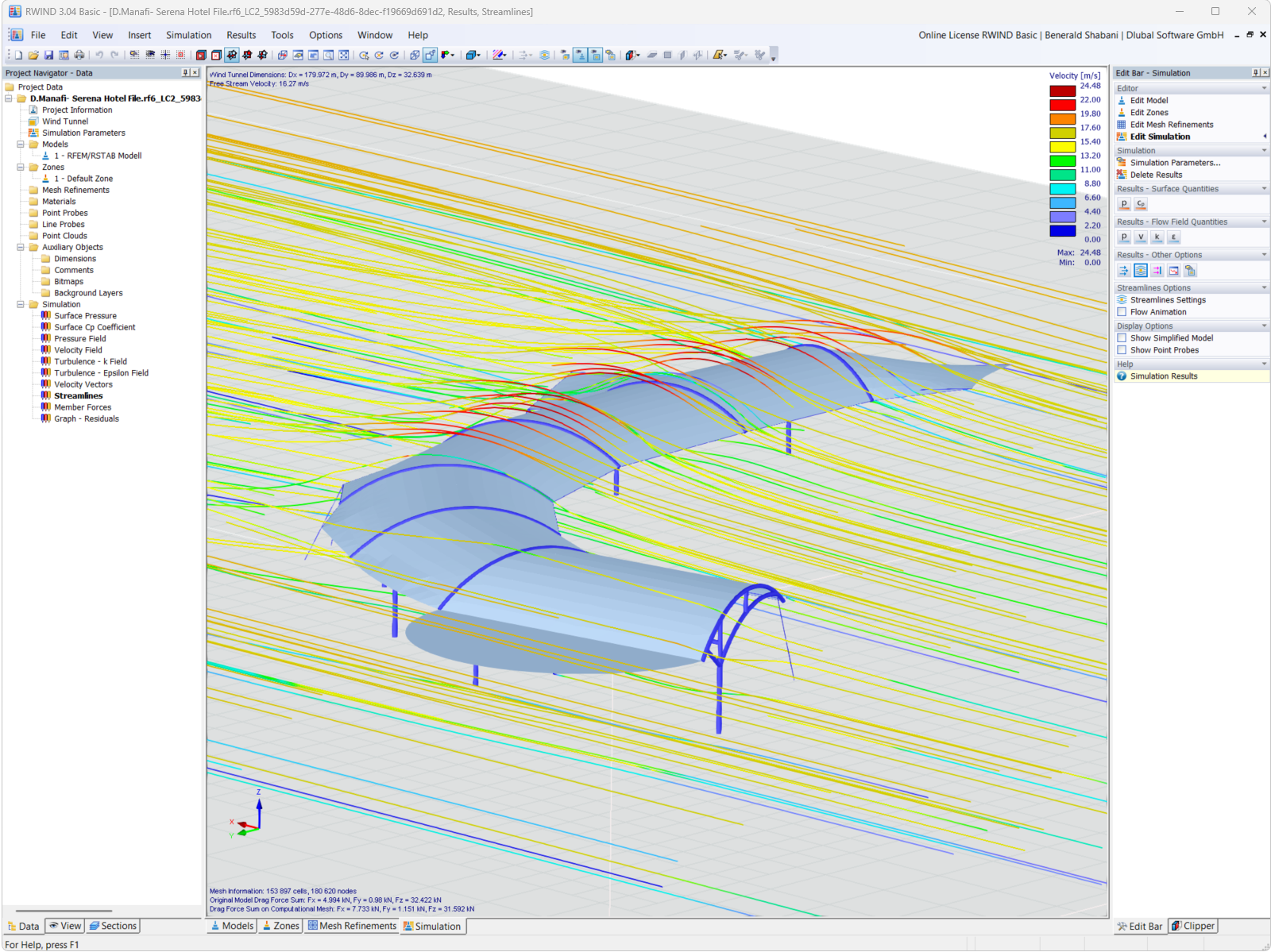

Visualization of wind load on a membrane structure, displayed in a CFD analysis.
The display shows the wind load distribution on a membrane roof in a fluid dynamics analysis. A detailed visualization of the air flow is used to illustrate the aerodynamic effects. The analysis helps to optimize the structure by evaluating the wind forces and their effects. RWIND 3 supports such advanced simulations, which are important for demanding structures. © Savana General Trading Company
3D Model
No Download Possible
Customer Project / View Only
More About 3D Model
Specifications
| Number of Nodes | 113 |
| Number of Lines | 172 |
| Number of Members | 149 |
| Number of Surfaces | 21 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 1.966 t |
| Dimensions (Metric) | 39.584 x 4.070 x 31.240 m |
| Dimensions (Imperial) | 129.87 x 13.35 x 102.49 feet |
